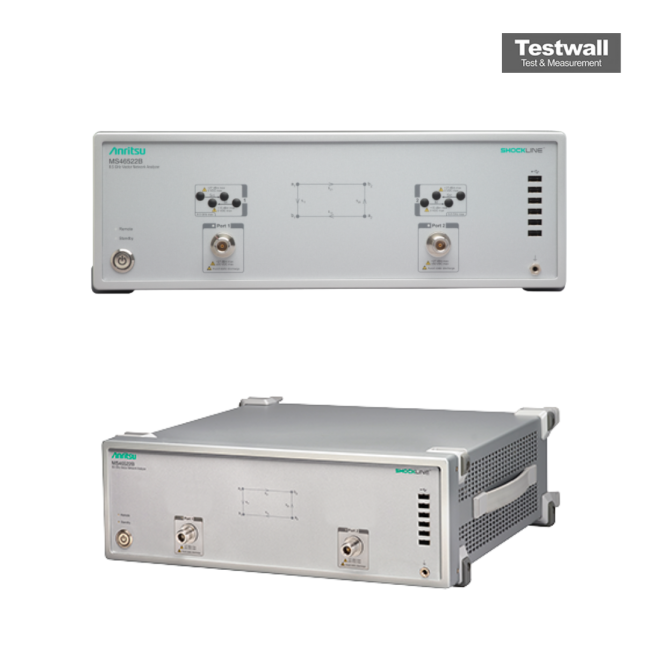

Anritsu MS46522B-010
| Attribute | Value |
|---|---|
| Frequency Range | 1 MHz to 8 GHz |
| Number of Ports | 2 |
| Dynamic Range | 130 dB |
| Output Power Range | -45 dBm to +3 dBm |
| Trace Noise | 0.004 dB RMS |
| Measurement Speed | 4 µs per point (minimum) |
| Display | 12.1-inch XGA Color LCD Touchscreen |
| Connector Type | N-Type (50 Ohm) |
| Power Requirements | 90–264 VAC, 47–63 Hz |
| Operating Temperature | 0°C to +50°C |
Anritsu MS46522B-010 Options:
- MS46522B-010 - 001 - Rack Mount, adds handles and removes feet for shelf-mounting into a 19 inch universal rack
- MS46522B-010 - 002 - Time Domain with Time Gating
- MS46522B-010 - 022 - Advanced Time Domain
- MS46522B-010 - 024 - Universal Fixture Extraction
- MS46522B-010 - 061 - Bias Tee (Only available with Option 10)
- MS46522B-010 - 097 - Accredited Calibration, with data
- MS46522B-010 - 098 - Standard Calibration, ISO 17025 compliant, without data
- MS46522B-010 - 099 - Premium Calibration, ISO 17025 compliant, with data
| Model | MS46522B-010 |
|---|
The Keysight (Agilent) MS46522B‑010 is a precision vector network analyzer covering 50 kHz to 8.5 GHz, offering exceptional measurement fidelity, high output power, excellent dynamic range, and superior directivity for RF testing and component characterization.
Its compact 3U design supports S‑parameter analysis, passive component calibration, and optional time-domain or bias‑tee modules, providing flexible setups for R&D and production environments.
Testwall supplies the MS46522B‑010 with full expert support and global delivery. The unit is fully tested to ensure high-performance instrumentation, and our team offers calibration services upon request for optimal results.
Testwall can supply the used MS46522B‑010, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the MS46522B‑010.
