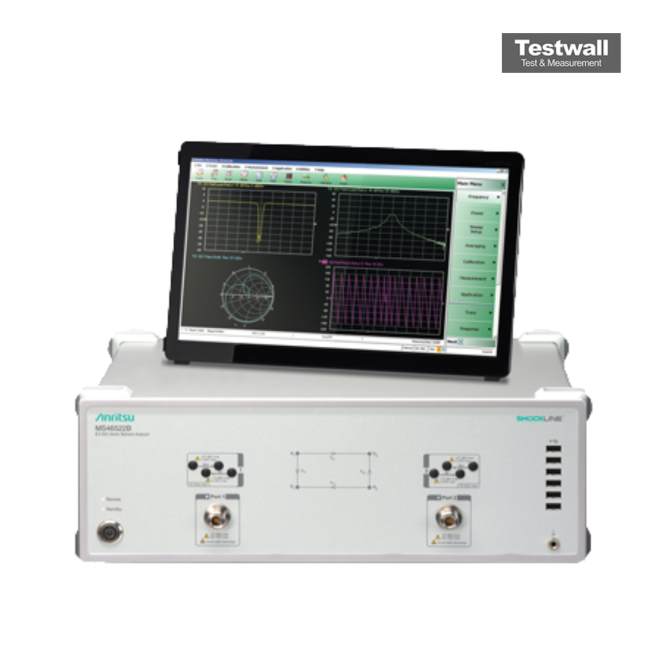

Anritsu MS46522B-020
| Attribute | Value |
|---|---|
| Frequency Range | 1 MHz to 20 GHz |
| Number of Ports | 2 |
| Dynamic Range | 127 dB |
| Output Power Range | -50 dBm to +3 dBm |
| Trace Noise | 0.004 dB RMS |
| Measurement Speed | 4 µs per point (typical) |
| IF Bandwidth Range | 1 Hz to 100 kHz |
| Connector Type | 3.5 mm (f) test port connectors |
| Display | 12.1-inch XGA color LCD touchscreen |
| Power Requirements | 100–240 VAC, 50/60 Hz |
Anritsu MS46522B-020 Options:
- MS46522B-020 - 001 - Rack Mount, adds handles and removes feet for shelf-mounting into a 19 inch universal rack
- MS46522B-020 - 002 - Time Domain with Time Gating
- MS46522B-020 - 022 - Advanced Time Domain
- MS46522B-020 - 024 - Universal Fixture Extraction
- MS46522B-020 - 097 - Accredited Calibration, with data
- MS46522B-020 - 098 - Standard Calibration, ISO 17025 compliant, without data
- MS46522B-020 - 099 - Premium Calibration, ISO 17025 compliant, with data
| Model | MS46522B-020 |
|---|
The Anritsu MS46522B‑020 extends testing capability up to 20 GHz, featuring ruggedized K‑type ports for resilient connectivity and inheriting ShockLine’s excellence in dynamic range and automation. With 50 kHz–20 GHz coverage, SmartCal™ auto-calibration, and time-domain/gating options, it ensures high-fidelity measurements with minimal uncertainty.
Designed for higher-frequency passive device validation, the MS46522B‑020 offers rapid deployment through integrated software and SmartCal™, enabling precise signal integrity analysis for advanced testing workflows.
Testwall can supply the used Anritsu MS46522B‑020, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MS46522B‑020.
