Anritsu

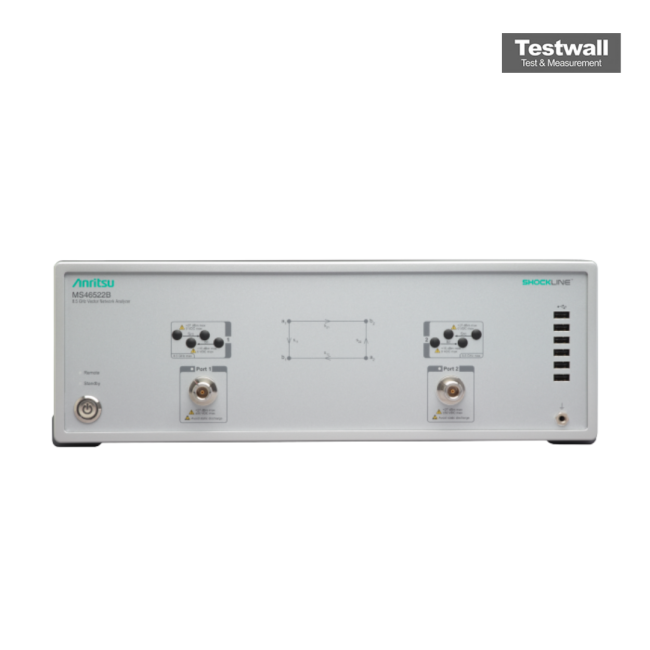

Anritsu MS46522B-082
ShockLine 2-Port Performance VNA, 55GHz - 92GHz
1 MHz to 8.5 GHz Frequency Range
2 Number of Ports
130 dB Dynamic Range
-50 dBm to +3 dBm Output Power Range
0.004 dB RMS Trace Noise
| Attribute | Value |
|---|---|
| Frequency Range | 1 MHz to 8.5 GHz |
| Number of Ports | 2 |
| Dynamic Range | 130 dB |
| Output Power Range | -50 dBm to +3 dBm |
| Trace Noise | 0.004 dB RMS |
| Measurement Speed | 4 µs per point (typical) |
| Connector Type | 3.5 mm (f) test port connectors |
| Display | 12.1-inch color LCD touchscreen |
| Interface | USB, LAN (Ethernet), GPIB (optional) |
| Power Requirements | 100–240 VAC, 50/60 Hz |
Anritsu MS46522B-082 Options:
- MS46522B-082 - 001 - Rack Mount, adds handles and removes feet for shelf-mounting into a 19 inch universal rack
- MS46522B-082 - 002 - Time Domain with Time Gating
- MS46522B-082 - 022 - Advanced Time Domain
- MS46522B-082 - 024 - Universal Fixture Extraction
| Model | MS46522B-082 |
|---|
The Anritsu MS46522B-082 E-band vector network analyzer covers 55–92 GHz using 1-meter tethered modules, ideal for millimeter-wave applications including 5G and automotive radar.
With SmartCal™ and integrated ShockLine software, it ensures high-frequency precision and supports scalable testing in extreme frequency environments.
Testwall can supply the used Anritsu MS46522B-082, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MS46522B-082.
