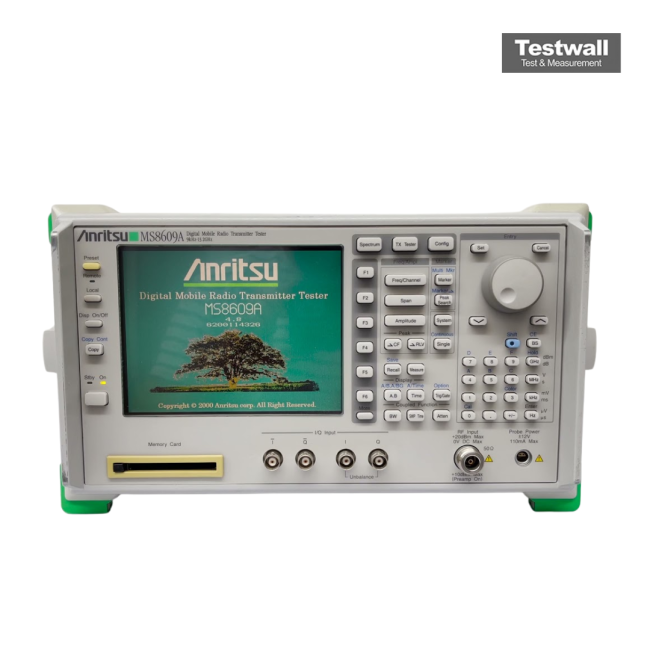

Anritsu MS8609A
| Attribute | Value |
|---|---|
| Frequency Range | 100 Hz to 8.5 GHz |
| Resolution Bandwidth | 1 Hz to 3 MHz (-3 dB), 10 Hz to 3 MHz (impulse bandwidth) |
| Display Average Noise Level | -152 dBm/Hz (typ.) at 1 GHz, preamp ON |
| Phase Noise | -105 dBc/Hz at 1 GHz, 10 kHz offset (typ.) |
| Input Impedance | 50 Ohms |
| Maximum Input Level | +30 dBm (1 W) |
| Amplitude Measurement Range | -152 dBm to +30 dBm |
| Video Bandwidth | 1 Hz to 3 MHz |
| Sweep Time | 10 ms to 1000 s (span > 0 Hz), 1 µs to 1 s (zero span) |
| Display | 8.4-inch color TFT LCD, 640 x 480 resolution |
| Model | MS8609A |
|---|
The Anritsu MS8609A transmitter tester integrates a spectrum analyzer, modulation analyzer, and power meter, supporting 9 kHz to 13.2 GHz with input up to +20 dBm. With 20 MHz resolution bandwidth, it provides wideband signal analysis, while the DSP-based VSA ensures high-speed vector signal analysis. The amorphous power sensor delivers ±0.4 dB measurement accuracy, and multiple measurement options like W-CDMA, GSM/EDGE, HSDPA, WLAN/802.11, CDMA, and 1xEVDO are supported. Connectivity options include GPIB, RS-232C, and Ethernet with high-speed data transfer.
This versatile tester is ideal for base station development, manufacturing, and maintenance, providing reliable ACP and modulation evaluations. Its TFT LCD display ensures easy operation and accurate analysis across wireless communication standards.
Testwall can supply the used Anritsu MS8609A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MS8609A.
