Anritsu MS9001B
| Attribute | Value |
|---|---|
| Wavelength Range | 600 nm to 1750 nm |
| Wavelength Resolution | 0.1 nm |
| Wavelength Accuracy | ±0.3 nm |
| Dynamic Range | 60 dB |
| Level Measurement Range | -80 dBm to +20 dBm |
| Level Accuracy | ±0.5 dB |
| Sweep Speed | 0.5 nm/s to 100 nm/s |
| Display | Color CRT Display |
| Interface | GP-IB (IEEE 488) |
| Power Supply | 100/120/220/240 VAC, 50/60 Hz |
| Model | MS9001B |
|---|

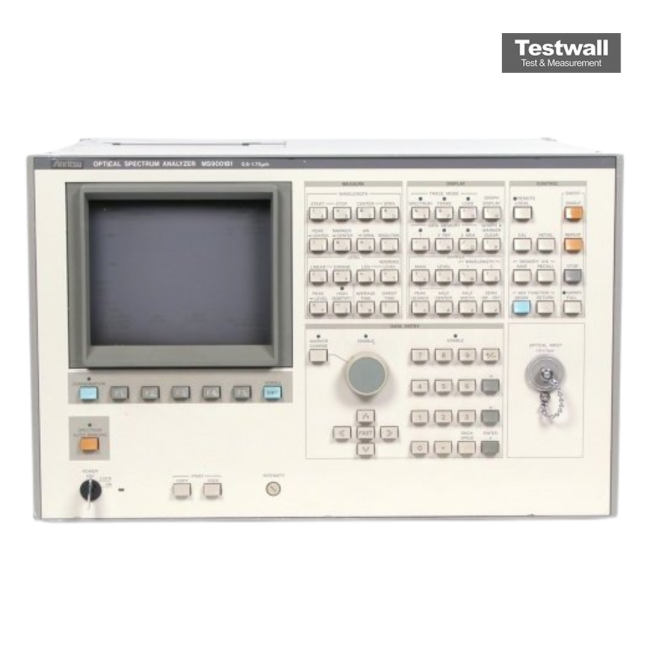

The Anritsu MS9001B Optical Spectrum Analyzer delivers precise and fast measurements across a wavelength range of 600 to 1750 nm. It supports optical communication testing at 1.55 μm, making it ideal for analyzing long-distance optical transmission elements. With an input power range from -70 to +10 dBm, 2 dB power accuracy, and linearity of 0.5 dB/20 dB and 1 dB/60 dB, it ensures dependable results. Its advanced diffraction grating design minimizes polarization issues, providing superior accuracy for LD and LED spectrum analysis.
The MS9001B provides versatile analysis functions such as LD spectrum, LED spectrum, fiber loss, and filter transmission. It also features a GPIB remote interface, enabling efficient integration into test setups.
Testwall can supply the used Anritsu MS9001B Optical Spectrum Analyzer, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MS9001B Optical Spectrum Analyzer.
