Anritsu
Anritsu MS96A
optical spectrum analyzer
600 nm to 1750 nm Wavelength Range
0.01 nm Wavelength Resolution
±0.05 nm Wavelength Accuracy
Greater than 60 dB Dynamic Range
-90 dBm to +20 dBm Level Measurement Range
| Attribute | Value |
|---|---|
| Wavelength Range | 600 nm to 1750 nm |
| Wavelength Resolution | 0.01 nm |
| Wavelength Accuracy | ±0.05 nm |
| Dynamic Range | Greater than 60 dB |
| Level Measurement Range | -90 dBm to +20 dBm |
| Level Measurement Accuracy | ±0.4 dB |
| Sweep Speed | 0.5 nm/s to 200 nm/s |
| Display | 8.4-inch TFT Color LCD |
| Interface | GP-IB, RS-232C, Ethernet |
| Power Supply | AC 100 V to 240 V, 50/60 Hz |
| Model | MS96A |
|---|

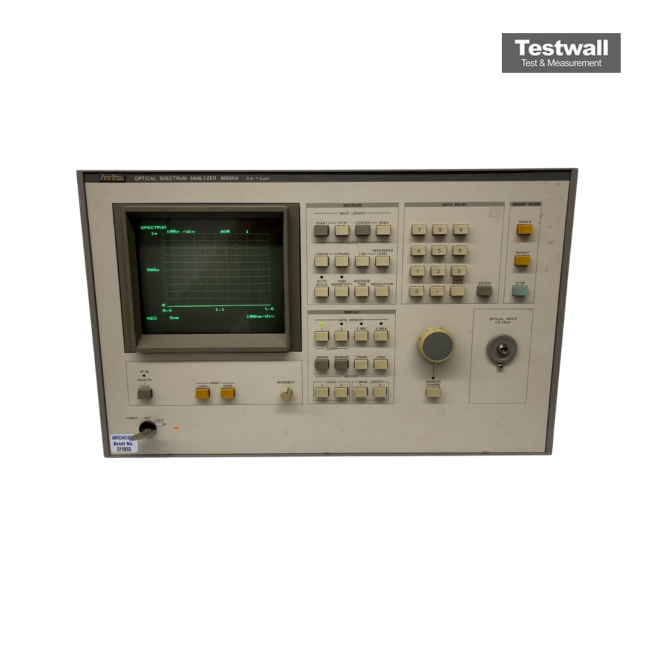

The Anritsu MS96A Optical Spectrum Analyzer offers precise amplitude versus wavelength measurements across the 0.6 µm to 1.75 µm range, with a fine wavelength resolution of 0.1 nm. It is designed for accurate optical testing in research and telecom applications.
The MS96A provides reliable spectral analysis, ideal for evaluating optical sources, components, and systems. It is the predecessor of the MS9710A model.
Testwall can supply the used Anritsu MS96A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MS96A.
