ANRITSU MS9710C
| Attribute | Value |
|---|---|
| Wavelength Range | 600 nm to 1750 nm |
| Wavelength Resolution | 0.01 nm |
| Wavelength Accuracy | ±0.05 nm |
| Dynamic Range | 70 dB |
| Sensitivity | -90 dBm |
| Level Measurement Range | -90 dBm to +20 dBm |
| Level Accuracy | ±0.4 dB |
| Sweep Time | 0.5 s (minimum) |
| Display | 8.4-inch Color LCD |
| Interface | GP-IB, RS-232C |
ANRITSU MS9710C Options:
- MS9710C - 02 - White light source
- MS9710C - 05 - Wavelength reference light source
- MS9710C - 13 - Wavelength reference & SLD light source
- MS9710C - 14 - SLD light source
- MS9710C - 15 - L-band enhancement
- MS9710C - 25 - FC-APC connector
- MS9710C - 26 - SC-APC connector
- MS9710C - 27 - E2000 connector
- MS9710C - 31 - EC (Radial) connector
- MS9710C - 37 - FC connector
- MS9710C - 38 - ST connector
- MS9710C - 39 - DIN connector
- MS9710C - 40 - SC connector
- MS9710C - 43 - HMS-10/A connector
- MS9710C - 47 - HRL-10 connector
| Model | MS9710C |
|---|

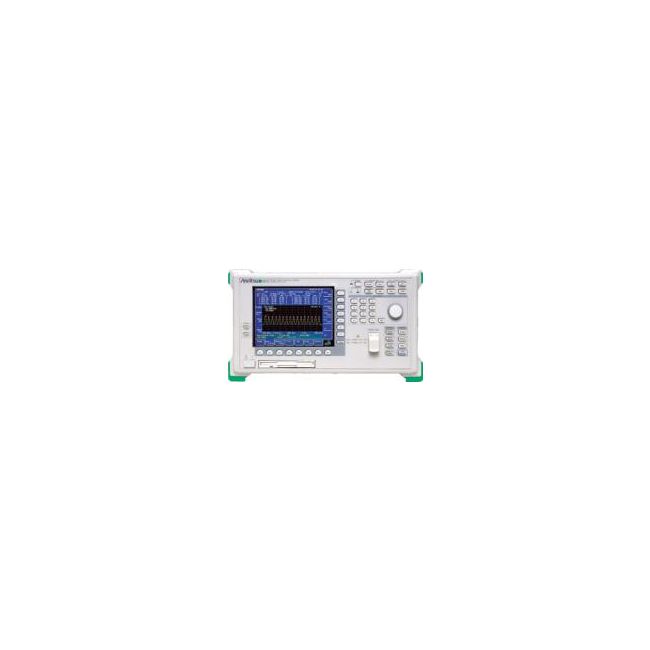

The Anritsu MS9710C Optical Spectrum Analyzer offers precise wavelength accuracy, enhanced resolution bandwidth, and excellent signal-to-noise averaging. It covers a broad wavelength range of 600–1750 nm with superior reception sensitivity, wide dynamic range, and high power level accuracy. The MS9710C provides improved performance in the L-Band region (1570–1620 nm), making it ideal for advanced optical testing applications.
It supports measurements of wavelength, power level, and SNR across up to 300 DWDM channels. Additional functions include PMD and EDFA noise floor measurements, tunable laser source tracking, and optional internal light sources for simplified testing operations.

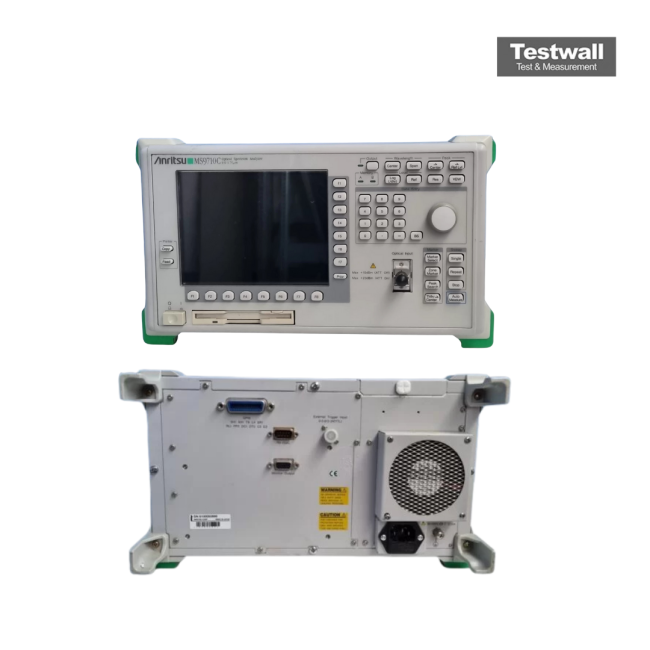

Testwall can supply the used Anritsu MS9710C, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MS9710C.
