Anritsu MS9740B
| Attribute | Value |
|---|---|
| Wavelength Range | 600 nm to 1750 nm |
| Wavelength Resolution | 0.03 nm |
| Wavelength Accuracy | ±0.02 nm |
| Dynamic Range | 78 dB |
| Sensitivity | -90 dBm |
| Level Measurement Range | -90 dBm to +20 dBm |
| Level Measurement Uncertainty | ±0.4 dB |
| Sweep Speed | 0.5 nm/s to 100 nm/s (High Sensitivity Mode) |
| Display | 10.4-inch TFT Color LCD |
| Interface | USB, LAN (Ethernet), GP-IB |
Anritsu MS9740B Options:
- MS9740B - 001 - GPIB Interface
- MS9740B - 101 - GPIB Interface Retrofit
- MS9740B - 002 - Light Source for Wavelength Calibration
- MS9740B - 102 - Light Source for Wavelength Calibration Retrofit
- MS9740B - 009 - Multimode Fiber Interface (50/62.5 μm)
- MS9740B - 037 - FC Connector
- MS9740B - 038 - ST Connector
- MS9740B - 039 - DIN 47256 Connector
- MS9740B - 040 - SC Connector
- MS9740B - 108 - OS Upgrade to Win10 Retrofit
| Model | MS9740B |
|---|

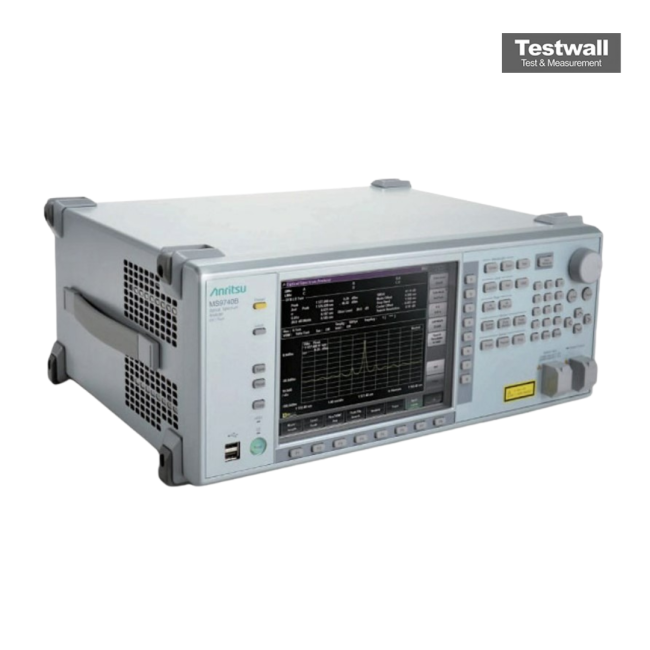

The Anritsu MS9740B Optical Spectrum Analyzer offers wide dynamic range, high resolution, and fast sweep speeds over a wavelength range of 600 nm to 1750 nm. It supports multimode fiber input, making it ideal for testing and manufacturing 850-nm band VCSEL modules. The analyzer achieves measurement processing times as fast as 0.35s with high sensitivity and 0.1-nm resolution, ensuring accurate spectral analysis.
With advanced application menus, the MS9740B enables efficient testing of LD modules, LEDs, WDM filters, and optical amplifiers. It provides key measurements such as optical center wavelength, OSNR, spectrum width, and SMSR with reproducibility of ±1.4 dB, streamlining production environments.
Testwall can supply the used Anritsu MS9740B Optical Spectrum Analyzer, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MS9740B Optical Spectrum Analyzer.
