Anritsu

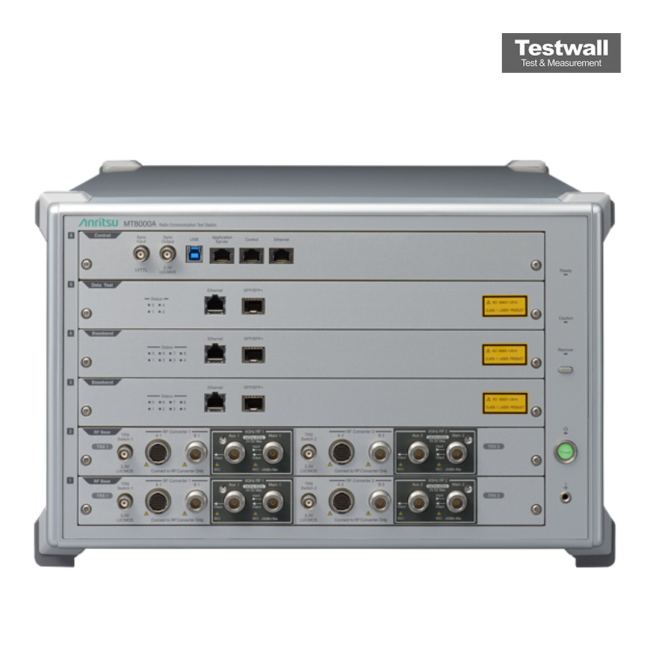

Anritsu MT8000A
Radio Communication Test Station
Sub-6 GHz and mmWave (FR1: 410 MHz – 7.125 GHz, FR2: 24.25 GHz – 52.6 GHz) Frequency Range
5G NR (SA and NSA), LTE, LTE-Advanced, LTE-Advanced Pro, W-CDMA/HSPA+, GSM/GPRS/EDGE Supported Standards
RF Tx/Rx measurements, protocol testing, RRM (Radio Resource Management), and signaling tests for 5G NR devices Test Capability
Supports both OTA (Over-The-Air) and conducted testing configurations Interface Support
Supports up to 8 component carriers for 5G NR carrier aggregation testing Carrier Aggregation
| Attribute | Value |
|---|---|
| Frequency Range | Sub-6 GHz and mmWave (FR1: 410 MHz – 7.125 GHz, FR2: 24.25 GHz – 52.6 GHz) |
| Supported Standards | 5G NR (SA and NSA), LTE, LTE-Advanced, LTE-Advanced Pro, W-CDMA/HSPA+, GSM/GPRS/EDGE |
| Test Capability | RF Tx/Rx measurements, protocol testing, RRM (Radio Resource Management), and signaling tests for 5G NR devices |
| Interface Support | Supports both OTA (Over-The-Air) and conducted testing configurations |
| Carrier Aggregation | Supports up to 8 component carriers for 5G NR carrier aggregation testing |
| Maximum RF Output Power | -40 dBm to +5 dBm (varies by frequency band and configuration) |
| Measurement Functions | Throughput, EVM, ACLR, SEM, frequency error, power measurements, and IQ analysis |
| Software Platform | Integrated SmartStudio test management software for automated test sequencing and reporting |
| Connectivity | LAN (1000BASE-T), USB 3.0, GPIB; remote control via SCPI commands |
| Power Requirements | AC 100–240 V, 50/60 Hz; power consumption approximately 1500 W maximum |
Anritsu MT8000A Options:
- MT8000A - 001 - Control Module
- MT8000A - 009 - Multi-box Data Connection
- MT8000A - 011 - Baseband Module
- MT8000A - 012 - Data Test Module
- MT8000A - 020 - RF Base Module
- MT8000A - 021 - 0.4 GHz-6 GHz RF Sub Module
- MT8000A - 022 - 3 GHz-12 GHz RF Sub Module
- MT8000A - 023 - Extend RF 2.4 GHz-3 GHz
- MT8000A - 024 - Extend RF 6 GHz-7.125 GHz
- MT8000A - 031 - 0.4 GHz-6 GHz Multi RF Module
- MT8000A - 032 - 0.4 GHz-6 GHz Multi RF Extension
- MX800010A - (base) - NR TDD Measurement Software
- MX800010A - 001 - NR TDD SA Call Processing Software
- MX800010A - 002 - NR TDD OTA Measurement Software
- MX800010A - 003 - NR IP Data Transfer
- MX800010A - 007 - NR TDD Sub-6 GHz Measurement
- MX800010A - 008 - NR TDD mmWave Measurement
- MX800010A - 009 - NR FDD Measurement
- MX800010A - 024 - NR BW 200 MHz Per Cell
- MX800010A - 031 - NR TDD DL 2x2 MIMO Up To Total BW 100 MHz
- MX800010A - 032 - NR TDD DL 2x2 MIMO Up To Total BW 200 MHz
- MX800010A - 033 - NR TDD DL 2x2 MIMO Up To Total BW 400 MHz
- MX800010A - 034 - NR TDD DL 2x2 MIMO Up To Total BW 600 MHz
- MX800010A - 035 - NR TDD DL 2x2 MIMO Up To Total BW 800 MHz
- MX800010A - 036 - NR TDD DL 4x4 MIMO Up To Total BW 100 MHz
- MX800010A - 037 - NR TDD DL 4x4 MIMO Up To Total BW 200 MHz
- MX800010A - 041 - NR TDD DL 2CA For Rx Measurement
- MX800010A - 042 - NR TDD DL 3CA For Rx Measurement
- MX800010A - 043 - NR TDD DL 4CA For Rx Measurement
- MX800010A - 044 - NR TDD DL 5CA For Rx Measurement
- MX800010A - 045 - NR TDD DL 6CA For Rx Measurement
- MX800010A - 046 - NR TDD DL 7CA For Rx Measurement
- MX800010A - 047 - NR TDD DL 8CA For Rx Measurement
- MX800010A - 051 - NR TDD UL 2x2 MIMO Up To Total BW 100 MHz
- MX800010A - 061 - NR TDD UL 2CA For Tx Measurement
- MX800010A - 062 - NR TDD UL 3CA For Tx Measurement
- MX800010A - 063 - NR TDD UL 4CA For Tx Measurement
- MX800030A - (base) - NR Protocol Platform Software
- MX800030A - 001 - NR TDD Platform
- MX800030A - 002 - NR FDD Platform
- MX800030A - 003 - Ciphering
- MX800030A - 005 - 5G SA Protocol
- MX800030A - 006 - NR SDAP
- MX800030A - 007 - NR FDD/TDD Joint CA
- MX800030A - 010 - RF/Fading Driver For Multiple box
- MX800030A - 031 - NR DL 2x2 MIMO BW 50 MHz Per Cell
- MX800030A - 032 - NR DL 2x2 MIMO BW 100 MHz Per Cell
- MX800030A - 033 - NR DL 2x2 MIMO BW 200 MHz Per Cell
- MX800030A - 035 - NR DL 4x4 MIMO BW 50 MHz Per Cell
- MX800030A - 036 - NR DL 4x4 MIMO BW 100 MHz Per Cell
- MX800030A - 041 - NR UL 2x2 MIMO BW 50 MHz Per Cell
- MX800030A - 042 - NR UL 2x2 MIMO BW 100 MHz Per Cell
- MX800030A - 051 - NR DL 2CA For Protocol
- MX800030A - 052 - NR DL 3CA For Protocol
- MX800030A - 053 - NR DL 4CA For Protocol
- MX800030A - 054 - NR DL 5CA For Protocol
- MX800030A - 055 - NR DL 6CA For Protocol
- MX800030A - 056 - NR DL 7CA For Protocol
- MX800030A - 057 - NR DL 8CA For Protocol
- MX800030A - 061 - NR UL 2CA For Protocol
- MX800030A - 062 - NR UL 3CA For Protocol
- MX800030A - 063 - NR UL 4CA For Protocol
- MX800030A - 071 - Digital IQ Basic For Protocol
- MX800031A - (base) - NR Fading Basic
- MX800031A - 001 - NR Fading 2x2 MIMO
- MX800031A - 002 - NR Fading 4x2/4x4 MIMO
- MX800031A - 003 - NR Fading 2CA-4CA
- MX800031A - 004 - NR Fading 5CA-8CA
- MX800032A - (base) - LTE Protocol Platform Software
- MX800032A - 001 - LTE Anchor For Protocol
- MX800032A - 002 - LTE Advance Features
- MX800032A - 010 - LTE RF/Fading Driver For Multiple box
- MX800033A - (base) - LTE Fading Basic
- MX800050A - (base) - Rapid Test Designer Platform (RTD)
- MX800050A - 001 - 5G NSA Framework For RTD
- MX800050A - 002 - RTD LL/L3 Procedure Libraries (5G)
- MX800050A - 003 - Core LTE Framework For RTD
- MX800050A - 004 - UTRAN/GERAN Framework For RTD
- MX800050A - 005 - IMS Framework For RTD
- MX800050A - 006 - IoT Framework For RTD
- MX800050A - 007 - LTE-A Framework For RTD
- MX800050A - 008 - LTE-A Pro Framework For RTD
- MX800050A - 009 - LTE MIMO Framework For RTD
- MX800050A - 010 - LTE Unlicensed Framework For RTD
- MX800050A - 011 - LTE/UTRAN/GERAN Fading Library For RTD
- MX800050A - 012 - 5G Fading Library
- MX800050A - 013 - 5G SA Framework For RTD
- MX800050A - 014 - eMBMS Framework For RTD
- MX800050A - 040 - RTD Test Creation and Editing Tools
- MX800050A - 041 - RTD Test Execution Tools
- MX800050A - 042 - RTD Protocol Analyzer
- MX800050A - 051 - RTD Floating (Server Based) License
- MX800060A - (base) - Control Software
- MX800060A - 001 - NSA Framework For L1/L2 Testing
- MX800060A - 013 - SA Framework For L1/L2 Testing
- MX800070A - (base) - SmartStudio NR
- MX800070A - 001 - 5G NSA Option
- MX800070A - 003 - LTE Core Option
- MX800070A - 011 - NR TDD Option
- MX800070A - 012 - NR FDD Option
- MX800070A - 030 - NR DL 2x2 MIMO BW 100 MHz Per Cell
- MX800070A - 035 - NR DL 4x4 MIMO BW 100 MHz Per Cell
- MX800070A - 050 - NR DL 2CA Option
- MX800070A - 051 - NR DL 3CA Option
- MX800070A - 052 - NR DL 4CA Option
- MX800070A - 080 - IMS Server Option
- MX800070A - 082 - RTP Control Option
- MX800079A - (base) - NR Platform Software for SmartStudio
| Model | MT8000A |
|---|
The Anritsu MT8000A is a 5G base station test platform supporting FR1 (up to 7.125 GHz) and FR2 (28–43.5 GHz) bands. It functions as a non-signaling RF tester, ideal for high-throughput production environments. Its design accommodates beamforming and mmWave analysis in RF chambers, streamlining 3GPP-band validation.
Useful for 5G validation workflows, it supports both sub-6 GHz and mmWave testing efficiently with beamforming capabilities.
Testwall can supply the used Anritsu MT8000A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MT8000A.
