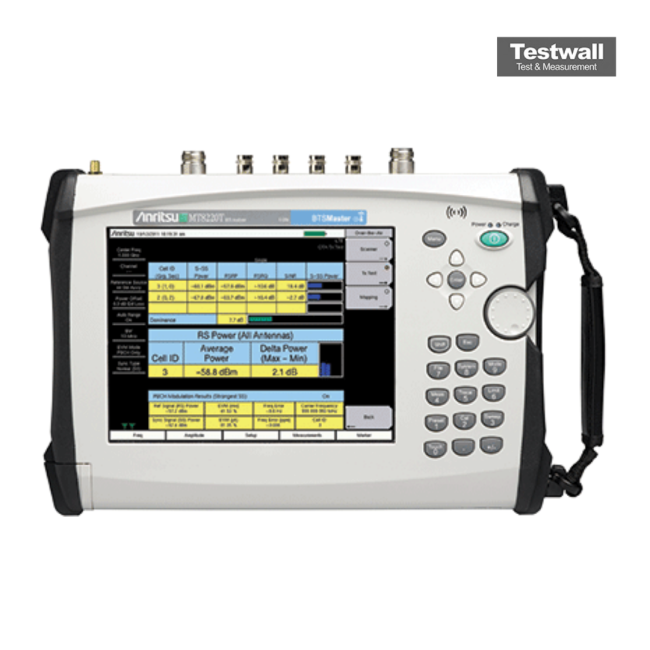

AnritsuMT8220TThe AnritsuMT8220T BTS Master is the 3rd generation high performance handheld Base Station Tester for installation and maintenance of wireless networks. The MT8220T BTS Master is curly the only all-in-one, touchscreen handheld tool that combines cable and antenna testing, signal analysis for all cellular standards, ultra-sensitive spectrum analysis, sophisticated interference tracking, and a vector signal generator for receiver testing in a compact, easy-to-use instrument.Features of the AnritsuMT8220T include: 2-port Cable and Antenna Analyser 400 MHz to 6 GHz Spectrum Analyser 150 kHz to 7.1 GHz Power Meter 10 MHz to 7.1 GHz GPS Receiver with Antenna Bias Tee High Accuracy Power Meter (up to 26 GHz with external sensor) Interference Analyser with Mapping Channel Scanner Vector Signal Generator 400 MHz to 6 GHz Signal Analysers CPRI RF Analyser BBU Emulation eMBMS LTE/LTE-A FDD/TDD, W-CDMA/HSPA+, GSM/GPRS/EDGE,
TD-SCDMA/HSPA+ CDMA, EV-DO Fixed and Mobile WiMAX Cable and Antenna Analyser Highlights of the AnritsuMT8220T include: Measurements: RL, VSWR, Cable Loss, DTF, Phase, Gain 2-port Gain Measurement Uncertainty: < 0.45 dB 2-port Dynamic Range: > 100 dB • RF Immunity: +17 dBm on-channel, +10 dBm on-frequency Calibration: OSL and FlexCal™ • Bias Tee: 32 V internal Spectrum Analyser and Interence Analyser Highlights of the MT8220T include: Measurements: Occupied Bandwidth, Channel Power, ACPR, C/I, Field Strength, Spectral Emissions Interference Analyser: Spectrogram, Signal Strength, RSSI, Signal ID Dynamic Range: > 95 dB in 1 Hz RBW • DANL: –163 dBm in 1 Hz RBW Phase Noise: –100 dBc/Hz @ 10 kHz offset Frequency Accuracy: ± 2.5 × 10–8 with GPS On Burst Detect™ Sweep Mode: sweep 1000x in 15 MHz span Coverage Mapping: plot RSSI to on-screen map Interference Mapping: on-screen mapping with triangulation Capabilities and Functional Highlights of the MT8220T: CPRI RF Measurements BBU Emulation ALu-Nokia LTE LTE/LTE-A FDD/TDD GSM/GPRS/EDGE W-CDMA/HSPA+ TD-SCDMA/HSPA+ CDMA/EV-DO WiMAX Fixed/Mobile Vector Signal Generator Zero-span IF Output Gated Sweep Standard GPS receiver, GPS information on stored traces PIM Alert Application Standard Internal Preamp Internal Power Meter High Accuracy Power Meter USB Power Sensors up to 26 GHz Channel Scanner 2.5 hour battery operation time < 5 minute warm-up time Ethernet/USB data transfer Remote Access Tool Line Sweep Tools
- 2-port Cable and Antenna Analyser 400 MHz to 6 GHz
- Spectrum Analyser 150 kHz to 7.1 GHz
- Power Meter 10 MHz to 7.1 GHz
- GPS Receiver with Antenna
- Bias Tee
- High Accuracy Power Meter (up to 26 GHz with external sensor)
- Interference Analyser with Mapping
- Channel Scanner
- Vector Signal Generator 400 MHz to 6 GHz
- Signal Analysers
- LTE/LTE-A FDD/TDD, W-CDMA/HSPA+, GSM/GPRS/EDGE,
TD-SCDMA/HSPA+ - CDMA, EV-DO
- Fixed and Mobile WiMAX
- CPRI RF Analyser
- BBU Emulation
- eMBMS
- LTE/LTE-A FDD/TDD, W-CDMA/HSPA+, GSM/GPRS/EDGE,
TD-SCDMA/HSPA+ - CDMA, EV-DO
- Fixed and Mobile WiMAX
TD-SCDMA/HSPA+
