Anritsu MT8801C
| Attribute | Value |
|---|---|
| Frequency Range | 800 MHz to 2000 MHz |
| Supported Standards | GSM, GPRS, EGPRS (EDGE), W-CDMA, HSDPA, HSUPA, cdmaOne, CDMA2000 1X, 1xEV-DO |
| RF Output Power Range | -130 dBm to -10 dBm |
| RF Input Power Range | -50 dBm to +35 dBm |
| Frequency Accuracy | ±0.05 ppm (with internal reference) |
| Modulation Analysis | QPSK, 8PSK, GMSK, 16QAM, 64QAM |
| Measurement Functions | TX Power, Adjacent Channel Power, Spurious Emissions, Bit Error Rate (BER), Receiver Sensitivity |
| Interface Ports | GPIB, RS-232C, USB, LAN (Ethernet) |
| Power Supply | AC 100 V to 240 V, 50/60 Hz |
| Operating Temperature Range | 0°C to +50°C |
Anritsu MT8801C Options:
- MT8801C - 01 - Analog Measurement
- MT8801C - 04 - AF Low Impedance Output (Requires Option 01)
- MT8801C - 07 - Spectrum Analyzer
- MT8801C - 11 - GSM Audio Test (Requires MX880115A and Option 01)
- MT8801C - 12 - CDMA Measurement (Requires Option 01)
- MX880113A - IS-136A Measurement Software (Requires Option 01)
- MX880114A - AMPS/PCS1900 Measurement Software (Requires Option 01)
- MX880115A - GSM Measurement Software
- MX880116A - PDC Measurement Software with Call Processing
- MX880117A - PHS Measurement Software with Call Processing
- MX880118A - DECT Measurement Software (Requires Option 07)
- MX880131A - PDC Measurement Software
- MX880132A - PHS Measurement Software
- MX880201A-01 - Soft Handoff (Requires Option 12)
| Model | MT8801C |
|---|

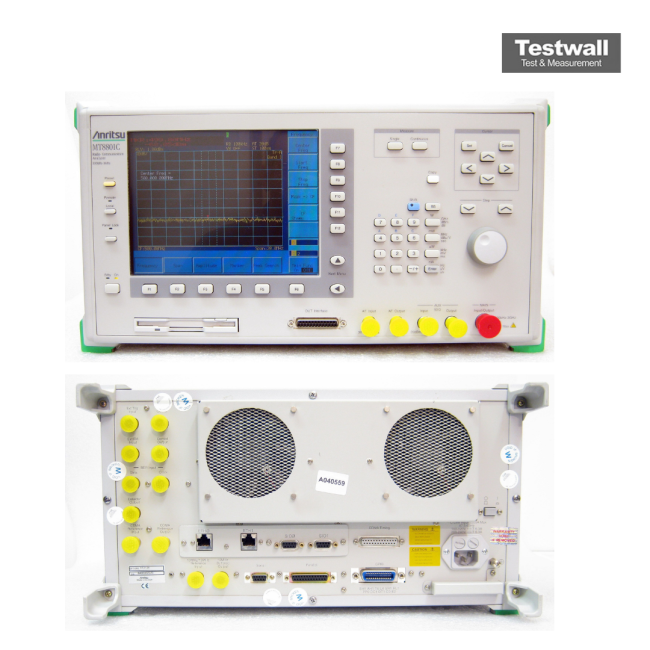

The Anritsu MT8801C Radio Communication Analyzer spans 300 kHz to 3 GHz, enabling evaluation of AMPS, GSM, GPRS, IS-136A, PDC, and PHS in a single hardware platform. It includes a built-in thermal power meter, optional internal spectrum analyzer (10 MHz–3 GHz), FM analog test capability, and executed loopback call-processing and sensitivity tests for multiple cellular protocols.
This versatile unit supports connection, send-during-communication tests, and PDC uplink RCH monitoring (RSSI and estimated error rate), all via standard GPIB and RS-232C interfaces—making it ideal for development, manufacturing, and automated testing integration.
Testwall can supply the used Anritsu MT8801C Radio Communication Analyzer, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MT8801C Radio Communication Analyzer.
