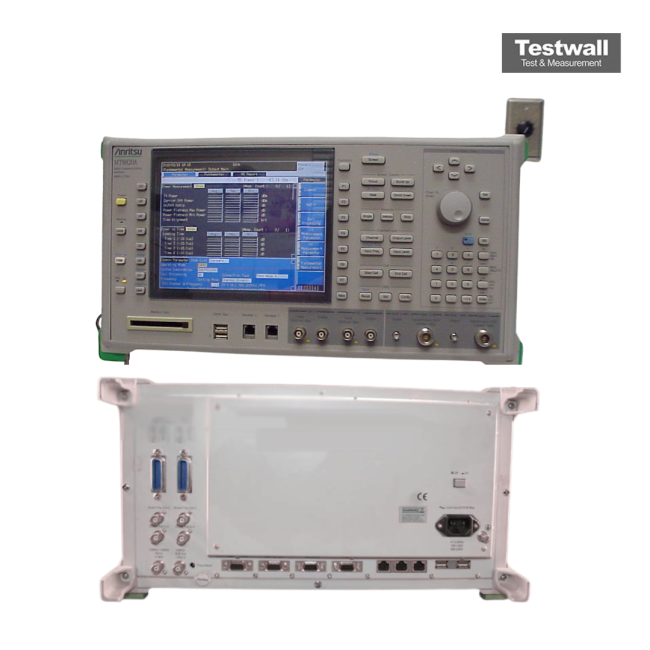

Anritsu MT8820A
| Attribute | Value |
|---|---|
| Frequency Range | 30 MHz to 2.7 GHz |
| Supported Standards | GSM/GPRS/EGPRS, W-CDMA/HSPA, CDMA2000 1X/1xEV-DO, TD-SCDMA, LTE |
| RF Output Power Range | -130 dBm to -10 dBm |
| RF Input Power Range | -50 dBm to +35 dBm |
| Frequency Accuracy | ±0.05 ppm (with internal reference) |
| Power Supply | AC 100-240V, 50/60 Hz |
| Power Consumption | Approximately 350 VA |
| Operating Temperature | 0°C to +50°C (32°F to 122°F) |
| Dimensions (W x H x D) | 426 mm x 177 mm x 451 mm (16.8 in x 6.97 in x 17.8 in) |
| Weight | Approximately 18 kg (39.7 lbs) |
Anritsu MT8820A Options:
- MT8820A - 01 - W-CDMA Measurement Hardware
- MT8820A - 02 - TDMA Measurement Hardware
- MT8820A - 03 - CDMA2000 Measurement Hardware
- MT8820A - 04 - 1xEV-DO Measurement Hardware
- MT8820A - 11 - Audio Board
- MT8820A - 12 - Parallel Phone Measurement Hardware
- MT8820A - 21 - W-CDMA Measurement Hardware retrofit
- MT8820A - 22 - TDMA Measurement Hardware retrofit
- MT8820A - 23 - CDMA2000 Measurement Hardware retrofit
- MT8820A - 24 - 1xEV-DO Measurement Hardware retrofit
- MT8820A - 31 - Audio Board retrofit
- MT8820A - 32 - Parallel Phone Measurement Hardware retrofit
- MT8820A - 90 - Extended three year warranty service
- MT8820A - 91 - Extended five year warranty service
- MX882000B - MX882000B - W-CDMA Measurement Software (requires MT8820A-01 and MX88205xA)
- MX882000B - 01 - W-CDMA Voice Codec (requires MT8820A-11 and MX882000B)
- MX882001A - MX882001A - GSM Measurement Software (requires MT8820A-02)
- MX882001A - 01 - GSM Voice Codec (requires MT8820A-11 and MX882001A)
- MX882001A - 02 - GSM External Packet Data (requires MX882001A)
- MX882001A - 11 - EGPRS Measurement Software (requires MX882001A)
- MX882002A - MX882002A - CDMA2000 Measurement Software (requires MT8820A-03)
- MX882002A - 02 - CDMA2000 External Packet Data (requires MX882002A)
- MX882003A - MX882003A - 1xEV-DO Measurement Software (requires MT8820A-03, MT8820A-04 and MX882002A)
- MX882003A - 02 - 1xEV-DO External Packet Data (requires MX882003A)
- MX882004A - MX882004A - PDC Measurement Software (requires MT8820A-02)
- MX882005A - MX882005A - PHS Measurement Software (requires MT8820A-02)
- MX882010A - MX882010A - Parallel Phone Measurement Software (requires MT8820A-12, two same measurement hardware and one measurement software)
- MX882022A - MX882022A - CDMA2000 Wireless Application Test Software (requires MT8820A-03)
- MX882050A - MX882050A - W-CDMA Call Processing Software (requires MX882000B)
- MX882050A - 02 - W-CDMA External Packet Data (requires MX882050A)
- MX882050A - 03 - W-CDMA Video Phone Test (requires MX882050A)
- MX882051A - MX882051A - W-CDMA Call Processing Software (requires MX882000B)
- MX882051A - 02 - W-CDMA External Packet Data (requires MX882051A)
- MX882051A - 03 - W-CDMA Video Phone Test (requires MX882051A)
- MX882071A - MX882071A - W-CDMA Ciphering Software (requires MX882051A)
| Model | MT8820A |
|---|
The Anritsu MT8820A Radio Communication Analyzer is a full-featured UMTS Master designed for multi-standard mobile device testing, supporting 3G protocols. It covers a wide frequency range from 30 MHz to 2.7 GHz and enables simultaneous transmitter and receiver measurements with its fast DSP engine.
This versatile analyzer supports W‑CDMA/HSPA, GSM/EGPRS, CDMA2000, and 1xEV‑DO through optional software. It allows call‑processing functions, including echo‑back voice and video phone tests, as well as batch automated measurements.
Testwall can supply the used Anritsu MT8820A, fully tested. With expert support and global delivery, Testwall ensures high‑performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MT8820A.
