Anritsu

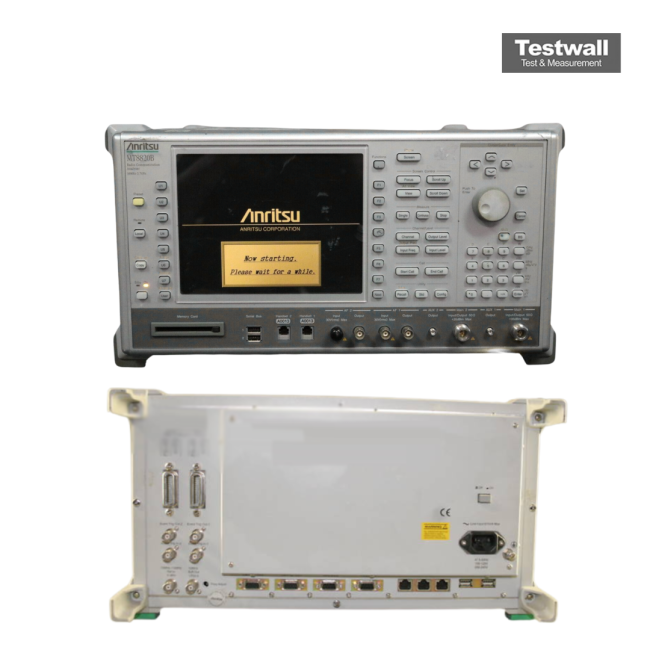

Anritsu MT8820B
Radio Communication Analyser 30MHz - 2.7 GHz
30 MHz to 2.7 GHz Frequency Range
GSM/GPRS/EGPRS, W-CDMA/HSPA, CDMA2000, 1xEV-DO, TD-SCDMA, LTE Supported Standards
-130 dBm to -10 dBm RF Output Power Range
-50 dBm to +35 dBm RF Input Power Range
±0.01 ppm (with built-in reference oscillator) Frequency Accuracy
| Attribute | Value |
|---|---|
| Frequency Range | 30 MHz to 2.7 GHz |
| Supported Standards | GSM/GPRS/EGPRS, W-CDMA/HSPA, CDMA2000, 1xEV-DO, TD-SCDMA, LTE |
| RF Output Power Range | -130 dBm to -10 dBm |
| RF Input Power Range | -50 dBm to +35 dBm |
| Frequency Accuracy | ±0.01 ppm (with built-in reference oscillator) |
| Number of RF Ports | 2 (Main and Sub) |
| Interface/Connectivity | GPIB, USB, LAN (Ethernet) |
| Operating Temperature Range | 0°C to +50°C |
| Power Supply | AC 100–240 V, 50/60 Hz |
| Dimensions (W x H x D) | 426 mm x 177 mm x 451 mm (approximately 16.8 x 7.0 x 17.8 inches) |
Anritsu MT8820B Options:
- MT8820B - 001 - W-CDMA Measurement Hardware
- MT8820B - 002 - TDMA Measurement Hardware
- MT8820B - 003 - CDMA2000 Measurement Hardware
- MT8820B - 004 - 1xEV-DO Measurement Hardware
- MT8820B - 011 - Audio Board
- MT8820B - 012 - Parallel Phone Measurement Hardware
- MT8820B - 031 - W-CDMA Measurement Hardware Lite
- MT8820B - 032 - TDMA Measurement Hardware Lite
- MT8820B - 043 - CDMA2000 Time Offset CAL For GPS SG (requires MT8820B-003 and MX882002C)
- MT8820B - 101 - W-CDMA Measurement Hardware retrofit
- MT8820B - 102 - TDMA Measurement Hardware retrofit
- MT8820B - 103 - CDMA2000 Measurement Hardware retrofit
- MT8820B - 104 - 1xEV-DO Measurement Hardware retrofit
- MT8820B - 111 - Audio Board retrofit
- MT8820B - 112 - Parallel Phone Measurement Hardware retrofit
- MT8820B - 131 - W-CDMA Measurement Hardware Lite Retrofit
- MT8820B - 132 - TDMA Measurement Hardware Lite Retrofit
- MT8820B - 143 - CDMA2000 Time Offset CAL For GPS SG Retrofit (requires MT8820B-003 and MX882002C)
- MX882000C - W-CDMA Measurement Software (requires MT8820B-001 and MX88205xC)
- MX882000C - 001 - W-CDMA Voice Codec (requires MT8820B-011 and MX882000C)
- MX882000C - 011 - HSDPA Measurement Software (requires MT8820B-001, MX882000C and MX882050C)
- MX882000C - 012 - HSDPA H-Set 6 Throughput Test (requires MT8820B-001, MX882000C, MX882000C-011 and MX882050C)
- MX882000C - 021 - HSUPA Measurement Software (requires MT8820B-001, MX882000C, MX882000C-011 and MX882050C)
- MX882001C - GSM Measurement Software (requires MT8820B-002)
- MX882001C - 001 - GSM Voice Codec (requires MT8820B-011 and MX882001C)
- MX882001C - 002 - GSM External Packet Data (requires MX882001C)
- MX882001C - 011 - EGPRS Measurement Software (requires MX882001C)
- MX882002C - CDMA2000 Measurement Software (requires MT8820B-003)
- MX882002C - 001 - CDMA2000 Voice Codec (requires MT8820B-011 and MX882002C)
- MX882002C - 002 - CDMA2000 External Packet Data (requires MX882002C)
- MX882003C - 1xEV-DO Measurement Software (requires MT8820B-003, MT8820B-004 and MX882002C)
- MX882003C - 002 - 1xEV-DO External Packet Data (requires MX882003C)
- MX882005C - PHS Measurement Software (requires MT8820B-002)
- MX882005C - 011 - Advanced PHS Measurement Software (requires MX882005C)
- MX882010C - Parallel Phone Measurement Software (requires MT8820B-012, two same measurement hardware and one measurement software)
- MX882030C - W-CDMA Measurement Software Lite (requires MT8820B-031)
- MX882030C - 001 - W-CDMA Voice Codec (requires MT8820B-011 and MX882030C)
- MX882030C - 009 - W-CDMA Band IX (requires MX882030C-050)
- MX882030C - 011 - HSDPA Measurement Software (requires MX882030C)
- MX882030C - 040 - W-CDMA High-speed Adjustment (requires MX882030C)
- MX882030C - 050 - W-CDMA Call Processing Software (requires MX882030C)
- MX882031C - GSM Measurement Software Lite (requires MT8820B-032)
- MX882031C - 001 - GSM Voice Codec (requires MT8820B-011 and MX882031C)
- MX882031C - 011 - EGPRS Measurement Software (requires MX882031C)
- MX882031C - 040 - EGPRS Predistortion Adjustment (requires MX882031C)
- MX882031C - 050 - GSM Call Processing Software (requires MX882031C)
- MX882050C - W-CDMA Call Processing Software (requires MX882000C)
- MX882050C - 002 - W-CDMA External Packet Data (requires MX882050C)
- MX882050C - 003 - W-CDMA Video Phone Test (requires MX882050C)
- MX882050C - 009 - W-CDMA Band IX (requires MX882050C)
- MX882050C - 011 - HSDPA External Packet Data (requires MX882000C-001)
- MX882070C - W-CDMA Ciphering Software (requires MX882050C)
- MX882051C - W-CDMA Call Processing Software (requires MX882000C)
- MX882051C - 002 - W-CDMA External Packet Data (requires MX882051C)
- MX882051C - 003 - W-CDMA Video Phone Test (requires MX882051C)
- MX882071C - W-CDMA Ciphering Software (requires MX882051C)
- MT8820B - ES210 - Extended Two Year Warranty Service
- MT8820B - ES310 - Extended Three Year Warranty Service
- MT8820B - ES510 - Extended Five Year Warranty Service
| Model | MT8820B |
|---|
The Anritsu MT8820B Radio Communication Analyzer operates across 30 MHz to 2.7 GHz, supporting Tx/Rx measurements for W-CDMA/HSPA, GSM/GPRS/EGPRS, CDMA2000 1X, CDMA2000 1xEV-DO, and PHS terminals. With dedicated software and hardware options, it ensures precise evaluation of transmission and reception characteristics.
This multi-system platform enhances terminal manufacturing efficiency by enabling detailed failure diagnosis and performance validation for multiple communication formats with one unit.
Testwall can supply the used Anritsu MT8820B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MT8820B.
