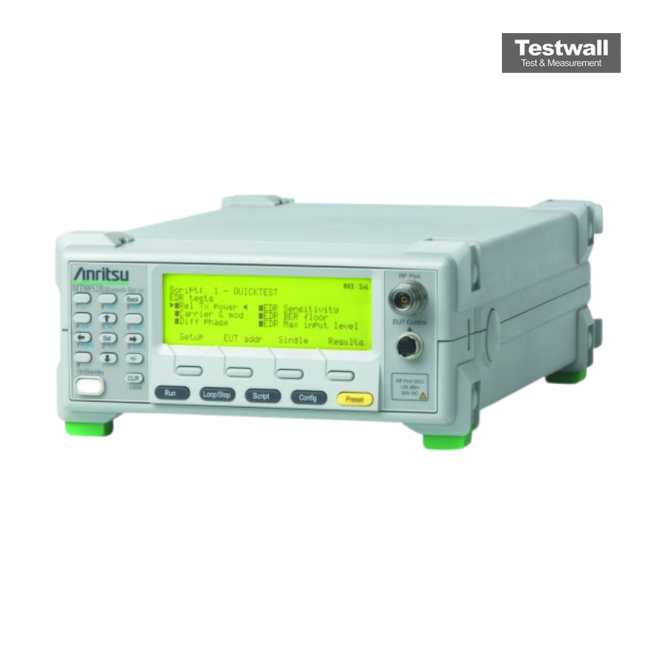

Anritsu MT8852B
| Attribute | Value |
|---|---|
| Frequency Range | 2.4 GHz and 5 GHz Bluetooth bands (2.402 GHz – 2.480 GHz) |
| Bluetooth Version Support | Bluetooth 1.1, 1.2, 2.0, 2.1 + EDR (Enhanced Data Rate) |
| Transmitter Power Measurement Range | -70 dBm to +20 dBm |
| Receiver Sensitivity Test Range | -70 dBm to -20 dBm output level range for BER testing |
| Modulation Analysis | Measures frequency deviation, modulation index, and DEVM (Differential Error Vector Magnitude) for EDR packets |
| Interface / Connectivity | GPIB and RS-232 interfaces for remote control and automation |
| Power Supply | AC 100–240 V, 50/60 Hz, auto-ranging power supply |
| Operating Temperature | 0°C to +40°C (32°F to 104°F) |
| Dimensions (W x H x D) | 426 mm x 177 mm x 451 mm (16.8 in x 7.0 in x 17.8 in) |
| Weight | Approximately 18 kg (39.7 lbs) |
| Model | MT8852B |
|---|
The Anritsu MT8852B Bluetooth Test Set provides advanced Bluetooth RF testing with support for Basic Rate (BR), Enhanced Data Rate (EDR), and Bluetooth Low Energy (BLE). It includes 9 Basic Rate, 8 EDR, and 24 BLE test cases, ensuring compliance with Bluetooth Core Specification v5.1. The system integrates a π/4DQPSK and 8DPSK signal generator, modulation analyzer, and full audio testing capability across three SCO channels with µ-Law, A-Law, and CVSD interfaces. Rear-panel analog connectors allow flexible audio input/output testing.
With BlueSuite Pro3 software, users can visualize modulation, power ramp, and receiver sensitivity. Its Adaptive Frequency Hopping (AFH) function makes it ideal for testing Bluetooth-enabled headsets, telephony, gateways, and AV devices. In production, a single script runs all BR, EDR, and BLE tests in under 10 seconds.
Testwall can supply the used Anritsu MT8852B Bluetooth Test Set, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MT8852B Bluetooth Test Set.
