Anritsu
Anritsu MT8870A
Universal Wireless Test Set
DC to 6 GHz Frequency Range
Up to 100 dB Dynamic Range
Fast measurement cycle time suitable for production testing environments Measurement Speed
4-port Vector Network Analyzer (VNA) Number of Ports
-45 dBm to +5 dBm Output Power Range
| Attribute | Value |
|---|---|
| Frequency Range | DC to 6 GHz |
| Dynamic Range | Up to 100 dB |
| Measurement Speed | Fast measurement cycle time suitable for production testing environments |
| Number of Ports | 4-port Vector Network Analyzer (VNA) |
| Output Power Range | -45 dBm to +5 dBm |
| Interface/Connectivity | USB, LAN (Ethernet), GPIB |
| Display | 10.4-inch color LCD touchscreen display |
| Operating Temperature | 0°C to 50°C |
| Power Requirements | AC 100-240V, 50/60 Hz |
| Dimensions (W x H x D) | Compact rack-mountable chassis design for bench and automated test applications |
Anritsu MT8870A Options:
- MT8870A - 001 - GPIB Control
- MT8870A - 101/201 - GPIB Control Retrofit
- MT8870A - ES210 - 2 Years Extended Warranty Service
- MT8870A - ES310 - 3 Years Extended Warranty Service
- MT8870A - ES510 - 5 Years Extended Warranty Service
- MU887000A - 001 - 6 GHz Frequency Extension
- MU887000A - 101/201 - 6 GHz Frequency Extension Retrofit
- MU887000A - 002 - Audio Measurement Hardware
- MU887000A - 102/202 - Audio Measurement Hardware Retrofit
- MU887000A - ES210 - 2 Years Extended Warranty Service
- MU887000A - ES310 - 3 Years Extended Warranty Service
- MU887000A - ES510 - 5 Years Extended Warranty Service
- MU887001A - 001 - 6 GHz Frequency Extension
- MU887001A - 101/201 - 6 GHz Frequency Extension Retrofit
- MU887001A - 002 - Audio Measurement Hardware
- MU887001A - 102/202 - Audio Measurement Hardware Retrofit
- MU887001A - ES210 - 2 Years Extended Warranty Service
- MU887001A - ES310 - 3 Years Extended Warranty Service
- MU887001A - ES510 - 5 Years Extended Warranty Service
- MX887010A - Cellular Standards Sequence Measurement
- MX887011A - W-CDMA/HSPA Uplink TX Measurement
- MX887012A - GSM/EDGE Uplink TX Measurement
- MX887013A - LTE FDD Uplink TX Measurement
- MX887013A - 001 - LTE-Advanced FDD Uplink CA TX Measurement
- MX887014A - LTE TDD Uplink TX Measurement
- MX887014A - 001 - LTE-Advanced TDD Uplink CA TX Measurement
- MX887015A - CDMA2000 Reverse Link TX Measurement
- MX887016A - 1xEV-DO Reverse Link TX Measurement
- MX887017A - TD-SCDMA Uplink TX Measurement
- MX887018A - NR FDD sub-6GHz Uplink TX Measurement
- MX887019A - NR TDD sub-6GHz Uplink TX Measurement
- MX887021A - W-CDMA/HSPA Downlink TX Measurement
- MX887023A - LTE FDD Downlink TX Measurement
- MX887030A - WLAN 802.11b/g/a/n TX Measurement
- MX887031A - WLAN 802.11ac TX Measurement
- MX887032A - WLAN 802.11p TX Measurement
- MX887033A - WLAN 802.11ax TX Measurement
- MX887040A - Bluetooth TX Measurement
- MX887040A - 001 - DLE TX Measurement
- MX887040A - 002 - 2LE TX Measurement
- MX887040A - 003 - BLR TX Measurement
- MX887050A - Short Range Wireless Average Power and Frequency Measurement
- MX887060A - IEEE 802.15.4 TX Measurement
- MX887061A - Z-Wave TX Measurement
- MX887065A - Category M FDD Uplink TX Measurement
- MX887067A - NB-IoT Uplink TX Measurement
- MX887068A - LTE-V2X Tx Measurement
- MX887070A - FM/Audio TRX Measurement
- MX887090A - Multi-DUT Measurement Scheduler
- MV887011A - W-CDMA/HSPA Downlink Waveforms
- MV887012A - GSM/EDGE Downlink Waveforms
- MV887013A - LTE FDD Downlink Waveforms
- MV887014A - LTE TDD Downlink Waveforms
- MV887015A - CDMA2000 Forward Link Waveforms
- MV887016A - 1xEV-DO Forward Link Waveforms
- MV887017A - TD-SCDMA Downlink Waveforms
- MV887018A - NR FDD sub-6GHz Downlink Waveforms
- MV887019A - NR TDD sub-6GHz Downlink Waveforms
- MV887021A - W-CDMA/HSPA Uplink Waveforms
- MV887023A - LTE FDD Uplink Waveforms
- MV887030A - WLAN 802.11b/g/a/n Waveforms
- MV887031A - WLAN 802.11ac Waveforms
- MV887032A - WLAN 802.11p Waveforms
- MV887033A - WLAN 802.11ax Waveforms
- MV887040A - Bluetooth Waveforms
- MV887040A - 001 - DLE Waveforms
- MV887040A - 002 - 2LE Waveforms
- MV887040A - 003 - BLR Waveforms
- MV887060A - IEEE 802.15.4 Waveforms
- MV887061A - Z-Wave Waveforms
- MV887065A - Category M FDD Downlink Waveforms
- MV887067A - NB-IoT Downlink Waveforms
- MV887068A - LTE-V2X Waveforms
- MV887070A - FM RDS Waveforms
- MV887100A - GPS Waveforms
- MV887100A - 002 - GPS L5 Waveforms
- MV887101A - Galileo Waveforms
- MV887102A - GLONASS Waveforms
- MV887103A - BeiDou Waveforms
- MV887104A - QZSS Waveforms
- MV887110A - DVB-H Waveforms
- MV887111A - ISDB-T Waveforms
- MV887112A - ISDB-Tmm Waveforms
| Model | MT8870A |
|---|

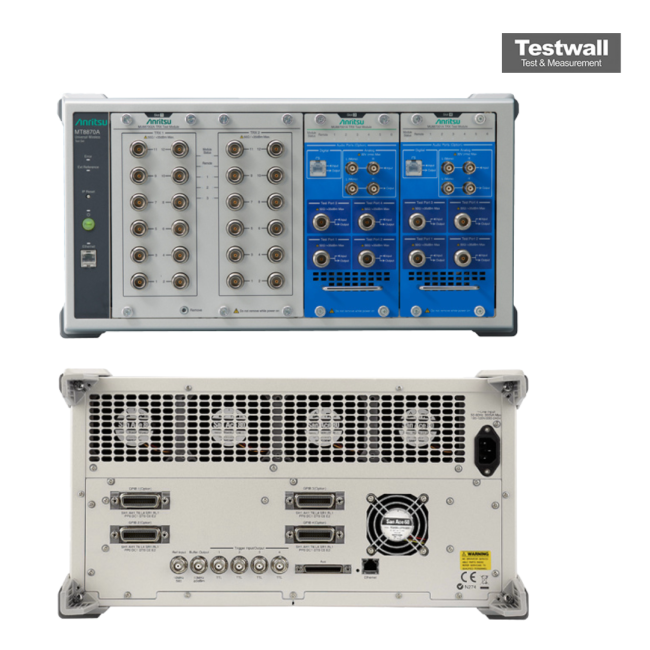

The Anritsu MT8870A is a universal, high‑throughput production test set combining signal generation and analysis from 10 MHz to 6 GHz with a wide 160 MHz measurement bandwidth. Its flexible chassis accepts up to four modular TRX test units, delivering as many as 48 RF ports to parallelize verification across devices and paths. Multi‑standard capability spans LTE, 5G NR, Bluetooth, GNSS and Wi‑Fi, enabling consistent results across mixed wireless builds in a single platform.
Optimized for mass manufacturing and calibration workflows, MT8870A streamlines setup, switching and scaling, reducing cycle time while preserving measurement repeatability across lines.
Testwall can supply the used Anritsu MT8870A, fully tested. With expert support and global delivery, Testwall ensures high‑performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MT8870A.
