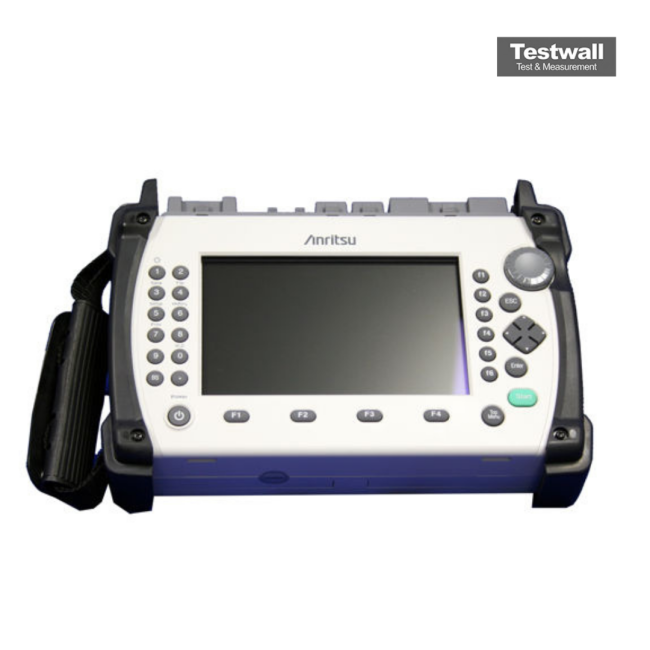

Anritsu MT9083A2-VZW-CTR1
| Attribute | Value |
|---|---|
| Wavelengths | 1310/1550 nm |
| Dynamic Range | 46/45 dB |
| Distance Range | Up to 320 km |
| Display | 7-inch color TFT LCD touchscreen |
| Connector Interface | FC/APC universal connector adapter |
| Battery Life | Approximately 8 hours with standard battery pack |
| Operating Temperature | -10°C to +50°C |
| Storage Temperature | -30°C to +70°C |
| Dimensions | 258 mm (W) x 190 mm (H) x 77 mm (D) |
| Weight | Approximately 2.5 kg including battery |
Anritsu MT9083A2-VZW-CTR1 Options:
- MT9083A2-VZW-CTR1 - 073 - 1310/1550 nm, SM - General-purpose model for construction, maintenance and fault location
- MT9083A2-VZW-CTR1 - 055 - 1310/1550 nm & 1650 nm, SM - General-purpose model for construction, maintenance and fault location plus in-service measurement
- MT9083A2-VZW-CTR1 - 057 - 1310/1550/1625 nm, SM - General-purpose plus enhanced macrobend detection at 1625 nm
- MT9083A2-VZW-CTR1 - 063 - 850/1300 nm MM, 1310/1550 nm SM - Best unit for contractors or anyone who installs or maintains hybrid networks
- MT9083A2-VZW-CTR1 - 010 - Protector Option (includes rubber bumpers, display cover and shoulder strap)
- MT9083A2-VZW-CTR1 - 004 - SMF Optical Power Meter (UPC only)
- MT9083A2-VZW-CTR1 - 005 - SMF High Power Optical Power Meter (UPC/APC)
- MT9083A2-VZW-CTR1 - 007 - SMF/MMF Optical Power Meter (UPC/APC)
- MT9083A2-VZW-CTR1 - 002 - Visible Laser Diode (Visible Light Source)
- MT9083A2-VZW-CTR1 - 025 - FC-APC Connector - single mode OTDR only (additional charge applies)
- MT9083A2-VZW-CTR1 - 026 - SC-APC Connector - single mode OTDR only (additional charge applies)
- MT9083A2-VZW-CTR1 - 037 - FC Connector
- MT9083A2-VZW-CTR1 - 038 - ST Connector
- MT9083A2-VZW-CTR1 - 039 - DIN Connector
- MT9083A2-VZW-CTR1 - 040 - SC Connector
- MT9083A2-VZW-CTR1 - 110 - Protector Option (Retrofit) - unit must be returned to authorized service center
- MT9083A2-VZW-CTR1 - 107 - SMF/MMF Optical Power Meter (Retrofit) - unit must be returned to authorized service center
- MT9083A2-VZW-CTR1 - 104 - SMF Optical Power Meter (Retrofit) - unit must be returned to authorized service center
- MT9083A2-VZW-CTR1 - 105 - SMF High Power Optical Power Meter (Retrofit) - unit must be returned to authorized service center
| Model | MT9083A2-VZW-CTR1 |
|---|
The Anritsu MT9083A2‑VZW‑CTR1 is a Verizon-approved OTDR kit engineered for precise PON testing. It supports split ratios up to 1×128 with a robust ~39 dB dynamic range, ensuring reliable fault detection and deep fiber link analysis. Featuring a rugged 7″ transflective TFT LCD for outdoor use, this unit offers up to 12 hours of battery life and intuitive quick-start keys for rapid diagnostics.
Equipped with an integrated optical power meter and visible light source, the MT9083A2‑VZW‑CTR1 provides comprehensive test coverage. It is optimized for demanding field conditions, ensuring accurate qualification and fault localization across fiber networks.
Testwall can supply the used Anritsu MT9083A2‑VZW‑CTR1, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MT9083A2‑VZW‑CTR1.
