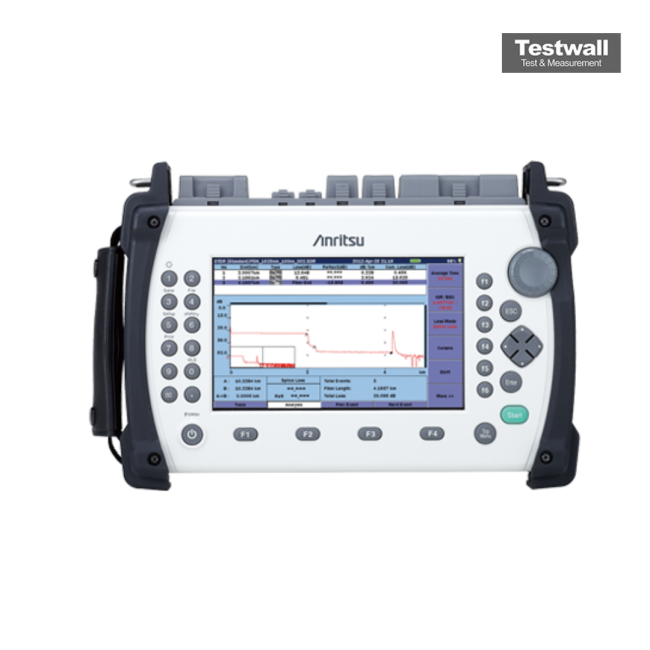

Anritsu MT9083B
| Attribute | Value |
|---|---|
| Wavelengths | 850/1300 nm (Multimode), 1310/1550 nm (Singlemode) |
| Dynamic Range | Up to 46 dB (depending on wavelength and configuration) |
| Distance Range | Up to 320 km |
| Distance Accuracy | ±1 m |
| Pulse Width | 3 ns to 20000 ns |
| Sampling Resolution | 4 cm |
| Display | 7-inch color TFT LCD touchscreen |
| Battery Life | Approximately 7 hours with standard battery pack |
| Operating Temperature | -10°C to +50°C |
| Interfaces | USB, Ethernet (LAN), SD Card slot |
Anritsu MT9083B Access Master OTDR High Performance Model Options:
- MT9083B - 001 - Ip Network Connection Check Function
- MT9083B - 002 - Visible Laser Diode
- MT9083B - 004 - Smf Optical Power Meter (Upc Only)
- MT9083B - 005 - Smf High Power Optical Power Meter (Upc/Apc)
- MT9083B - 007 - Smf/Mmf Optical Power Meter (Upc/Apc)
- MT9083B - 010 - Protector Option (Includes Rubber Bumpers, Display Cover And Shoulder Strap)
- MT9083B - 011 - Gigabit Ethernet Upgrade
- MT9083B - 025 - Fc-Apc Connector
- MT9083B - 026 - Sc-Apc Connector
- MT9083B - 033 - Lc Connector
- MT9083B - 037 - Fc Connector
- MT9083B - 038 - St Connector
- MT9083B - 039 - Din Connector
- MT9083B - 040 - Sc Connector
- MT9083B - 043 - Hms-10/A Connector
- MT9083B - 053 - 1310Nm / 1550Nm Singlemode
- MT9083B - 055 - 1310Nm / 1550Nm / 1650Nm Singlemode
- MT9083B - 056 - 1310Nm / 1490Nm / 1550Nm Singlemode
- MT9083B - 057 - 1310Nm / 1550Nm / 1625Nm Singlemode
- MT9083B - 058 - 1310Nm / 1490Nm / 1550Nm / 1625Nm Singlemode
- MT9083B - 059 - 1310Nm / 1383Nm / 1550Nm / 1625Nm, Singlemode
- MT9083B - 063 - 850Nm / 1300Nm Multimode + 1310Nm / 1550Nm Singlemode
- MT9083B - 101 - Ip Network Connection Check Function
- MT9083B - 102 - Visible Laser Diode
- MT9083B - 104 - Smf Optical Power Meter (Upc Only)
- MT9083B - 105 - Smf High Power Optical Power Meter (Upc/Apc)
- MT9083B - 107 - Smf/Mmf Optical Power Meter (Upc/Apc)
- MT9083B - 110 - Protector Option (Includes Rubber Bumpers, Display Cover And Shoulder Strap)
- MT9083B - 111 - Gigabit Ethernet Upgrade
| Model | MT9083B |
|---|
The Anritsu MT9083B Access Master OTDR delivers high-performance optical testing with multimode (850/1300 nm) and single-mode (780/1310/1383/1490/1550/1625/1650 nm) capabilities in a single unit, four-wavelength testing, rapid 15-second startup, high resolution, up to 42 dB dynamic range, and full 1×64 PON support for precise fiber characterization.
Its compact, lightweight, all-in-one design eliminates the need for multiple test sets, consolidates high-resolution trace analysis, accurate loss measurements, and advanced PON diagnostics, with rugged, weather-resistant construction streamlining installation, maintenance, and troubleshooting.
Testwall’s expert team fully tests and certifies each used Anritsu MT9083B, offering comprehensive optional calibration or repair services, fast global delivery, and 24/7 dedicated technical support, ensuring unmatched reliability, optimized performance, and exceptional service quality for your fiber network infrastructure.
