Anritsu MT9085
| Attribute | Value |
|---|---|
| Wavelength Range | 800 nm to 1700 nm |
| Dynamic Range | Up to 50 dB |
| Distance Range | Up to 320 km |
| Display | 7-inch color TFT LCD touchscreen |
| Measurement Capability | OTDR, OLS, OPM, and Visual Fault Locator (VFL) |
| Fiber Types Supported | Single-mode (SM) and Multimode (MM) |
| Battery Life | Approximately 8 hours of continuous operation |
| Data Storage | Internal memory plus USB and SD card support |
| Operating Temperature | -10°C to +50°C (14°F to 122°F) |
| Dimensions & Weight | Approximately 210 mm x 127 mm x 54 mm; 1.2 kg |
Anritsu MT9085 Options:
- MT9085C - 053 - High Performance Model: SMF 1.31/1.55 μm OTDR
- MT9085C - 057 - High Performance Model: SMF 1.31/1.55/1.625 μm OTDR
- MT9085B - 053 - Enhanced Model: SMF 1.31/1.55 μm OTDR
- MT9085B - 055 - Enhanced Model: SMF 1.31/1.55/1.65 μm OTDR
- MT9085B - 056 - Enhanced Model: SMF 1.31/1.49/1.55 μm OTDR
- MT9085B - 057 - Enhanced Model: SMF 1.31/1.55/1.625 μm OTDR
- MT9085B - 058 - Enhanced Model: SMF 1.31/1.49/1.55/1.625 μm OTDR
- MT9085B - 063 - Enhanced Model: MMF 0.85/1.3 μm & SMF 1.31/1.55 μm OTDR
- MT9085A - 053 - Standard Model: SMF 1.31/1.55 μm OTDR
- MT9085A - 057 - Standard Model: SMF 1.31/1.55/1.625 μm OTDR
- MT9085A - 063 - Standard Model: MMF 0.85/1.3 μm & SMF 1.31/1.55 μm OTDR
- MT9085 - 002 - Visual Fault Locator
- MT9085 - 004 - SMF Optical Power Meter (measurement range –50 to +23 dBm)
- MT9085 - 005 - SMF High Power Optical Power Meter (measurement range –43 to +30 dBm)
- MT9085 - 007 - SMF/MMF Optical Power Meter (measurement range –67 to +6 dBm)
- MT9085 - 010 - Protector
- MT9085 - 025 - FC-APC Connector Key width 2.0 mm
- MT9085 - 026 - SC-APC Connector
- MT9085 - 037 - FC Connector
- MT9085 - 038 - ST Connector
- MT9085 - 039 - DIN 47256 Connector
- MT9085 - 040 - SC Connector
| Model | MT9085 |
|---|

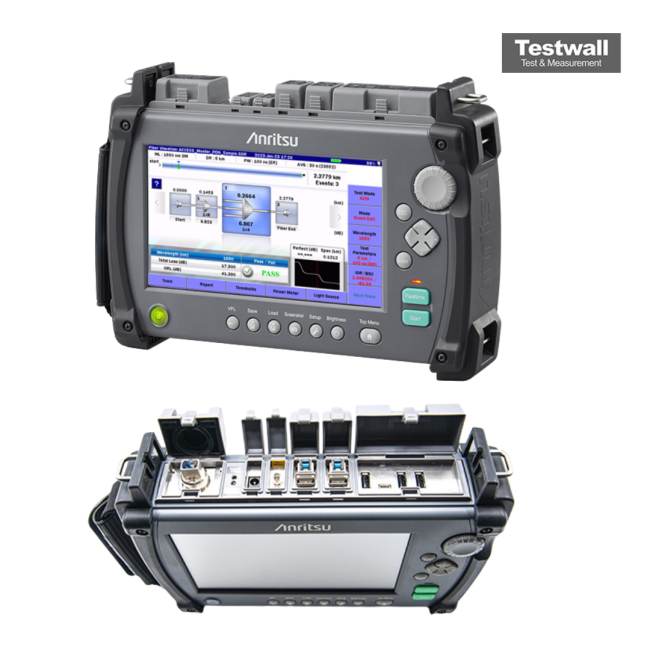

The Anritsu MT9085 is a rugged handheld all-in-one optical tester integrating OTDR, OLTS, and VLS functions. It features a bright 8-inch touchscreen combined with rotary knobs and hard keys for intuitive operation. With a 46 dB dynamic range and multi-pulse event detection, it provides precise measurements for both short and long fiber links. Additional support for external probes simplifies visual end-face inspection with reliable pass/fail indicators.
This versatile unit enables efficient fiber installation, maintenance, and troubleshooting across a wide range of networks. Its compact design makes it suitable for both field and lab environments.
Testwall can supply the used Anritsu MT9085, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MT9085.
