Anritsu

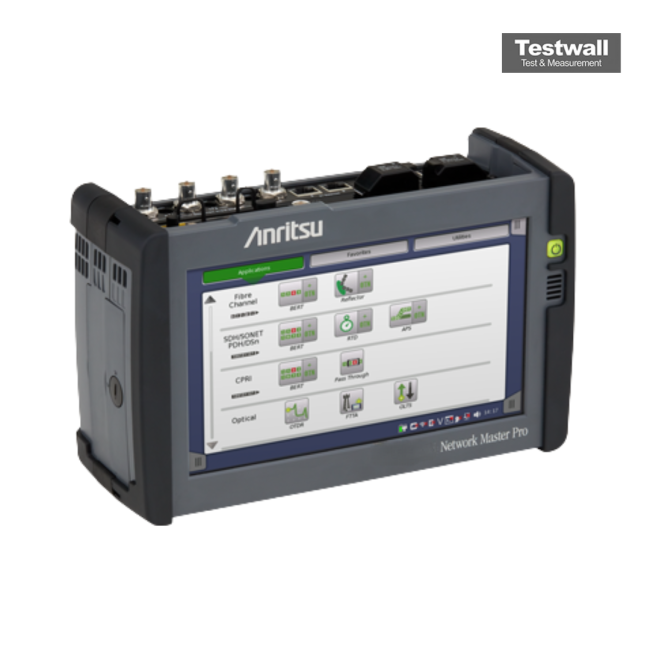

Anritsu MT9085A-053
Optical Time Domain Reflectometer(OTDR) with SM 1310/1550nm
1310 nm / 1550 nm Wavelength Range
46 dB (at 1310 nm) / 50 dB (at 1550 nm) Dynamic Range
Up to 320 km Distance Range
7-inch TFT Color LCD Touchscreen Display
FC/PC Universal Connector Connector Interface
| Attribute | Value |
|---|---|
| Wavelength Range | 1310 nm / 1550 nm |
| Dynamic Range | 46 dB (at 1310 nm) / 50 dB (at 1550 nm) |
| Distance Range | Up to 320 km |
| Display | 7-inch TFT Color LCD Touchscreen |
| Connector Interface | FC/PC Universal Connector |
| Battery Life | Approximately 7 hours with Li-Ion battery |
| Data Storage | Internal memory plus USB and SD card support |
| Operating Temperature | -10°C to +50°C |
| Weight | Approximately 1.8 kg (including battery) |
| Standards Compliance | Bellcore GR-196-CORE, IEC 61746 |
Anritsu MT9085A-053 Options:
- MT9083A-053 - 001 - IP Network Connection Check Function
- MT9083A-053 - 002 - Visible Laser Diode
- MT9083A-053 - 003 - SMF/GIF Optical Power Meter
- MT9083A-053 - 004 - SMF Optical Power Meter
- MT9083A-053 - 005 - SMF High Power Optical Power Meter
- MT9083A-053 - 010 - Protector (includes rubber bumpers, display cover and shoulder strap)
- MT9083A-053 - 011 - Gigabit Ethernet Upgrade (requires option MT9083A-001)
- MT9083A-053 - 025 - FC-APC connector - single mode only (additional charge applies)
- MT9083A-053 - 026 - SC-APC connector - single mode only (additional charge applies)
- MT9083A-053 - 033 - LC connector
- MT9083A-053 - 037 - FC connector
- MT9083A-053 - 038 - ST connector
- MT9083A-053 - 039 - DIN connector
- MT9083A-053 - 040 - SC connector
- MT9083A-053 - 043 - HMS-10/A connector
- MT9083A-053 - US - United States line cord
- MT9083A-053 - UK - United Kingdom line cord
- MT9083A-053 - EU - European Union line cord
- MT9083A-053 - AU - Australia line cord
- MT9083A-053 - IT - Italy line cord
| Model | MT9085A-053 |
|---|
The Anritsu MT9085A‑053 is a single‑mode OTDR operating at 1310/1550 nm, offering ~39/37.5 dB dynamic range, ≤1 m Fresnel dead zone, and ≤5.5 m backscatter dead zone, delivering precise fiber characterization with integrated OTDR, OLTS, and VLS capabilities.
Ideal for metro and premise fiber maintenance, it ensures reliable performance across both short‑span and long‑range measurement scenarios.
Testwall can supply the used Anritsu MT9085A‑053, fully tested. With expert support and global delivery, Testwall ensures high‑performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MT9085A‑053.
