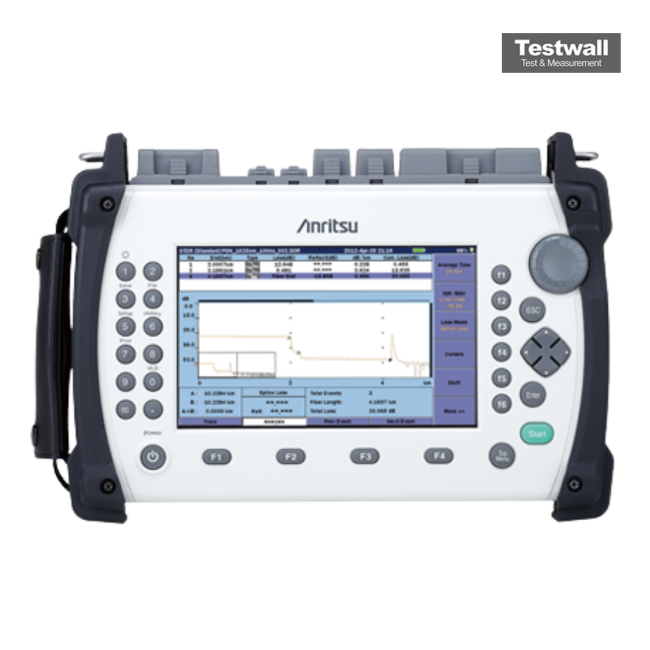

Anritsu MT9085A-063 OTDR - ACCESS Master Optical Time Domain Reflectometer(OTDR) with 1310/1550 nm SM - 850/1300 nm MM Optical Component Test
| Attribute | Value |
|---|---|
| Wavelengths | 1310/1550 nm (Singlemode), 850/1300 nm (Multimode) |
| Dynamic Range (SM) | Up to 46 dB at 1310 nm / 45 dB at 1550 nm |
| Dynamic Range (MM) | Up to 30 dB at 850 nm / 28 dB at 1300 nm |
| Distance Range | Up to 260 km (Singlemode) / Up to 15 km (Multimode) |
| Distance Accuracy | ±1 m ± 0.005% of distance ± sampling resolution |
| Event Dead Zone | ≤ 1.5 m (typical) |
| Attenuation Dead Zone | ≤ 5 m (typical) |
| Display | 7-inch color TFT LCD touchscreen, 800 × 480 resolution |
| Battery Life | Approximately 7 hours of continuous operation with built-in rechargeable Li-ion battery |
| Interfaces & Connectivity | USB, Ethernet (LAN), SD card slot; supports remote control and data transfer |
Anritsu MT9085A-063 OTDR - ACCESS Master Optical Time Domain Reflectometer(OTDR) with 1310/1550 nm SM - 850/1300 nm MM Optical Component Test Options:
- MT9085A-063 - 002 - Visual Fault Locator
- MT9085A-063 - 004 - SMF Optical Power Meter (–50 to +23 dBm)
- MT9085A-063 - 005 - SMF High Input Optical Power Meter (–43 to +30 dBm)
- MT9085A-063 - 007 - SMF/MMF Optical Power Meter (–67 to +6 dBm)
- MT9085A-063 - 010 - Protector
- MT9085A-063 - 025 - FC-APC Connector Key width 2.0 mm
- MT9085A-063 - 026 - SC-APC Connector
- MT9085A-063 - 037 - FC Connector
- MT9085A-063 - 038 - ST Connector
- MT9085A-063 - 039 - DIN 47256 Connector
- MT9085A-063 - 040 - SC Connector
| Model | MT9085A-063 |
|---|

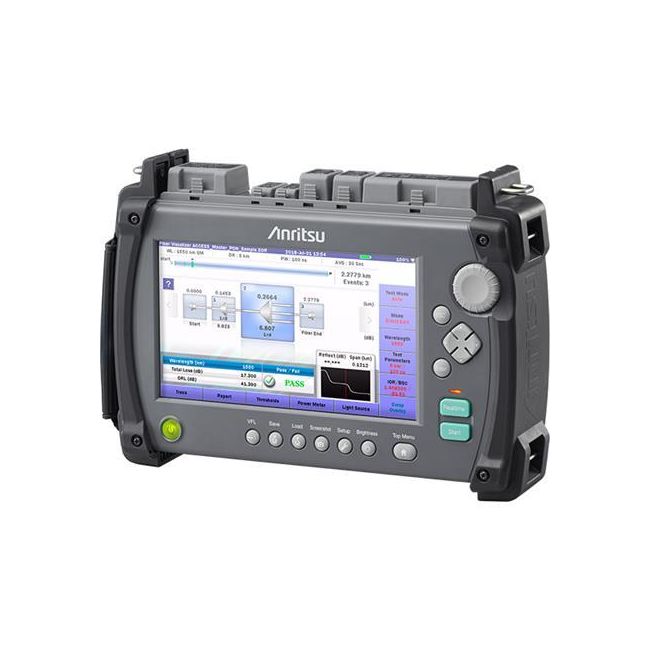

The Anritsu MT9085A-063 OTDR Access Master is a quad-band optical time-domain reflectometer supporting both SMF (1310/1550 nm) and MMF (850/1300 nm) for versatile testing applications. It provides dynamic ranges of ~39/37.5 dB (SMF) and ~29/28 dB (MMF), with event dead zones as short as 1 m. The handheld design integrates OTDR, optical loss/power measurement, and fiber inspection tools into a single, compact unit.
Ideal for fiber installation, maintenance, and troubleshooting, the MT9085A-063 ensures high accuracy, portability, and reliable measurement performance in demanding field conditions.
Testwall can supply the used Anritsu MT9085A-063 OTDR Access Master, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MT9085A-063 OTDR Access Master.
