Anritsu MT9085A
| Attribute | Value |
|---|---|
| Wavelengths | 1310 nm / 1550 nm / 1625 nm (model dependent) |
| Dynamic Range | Up to 46 dB (single-mode fiber, wavelength dependent) |
| Distance Range | Up to 260 km (single-mode fiber) |
| Display | 7-inch color TFT LCD touchscreen |
| Sampling Resolution | Down to 4 cm |
| Pulse Width | 3 ns to 20,000 ns (model dependent) |
| Fiber Type | Single-mode (SMF) and Multimode (MMF) support |
| Battery Life | Approximately 7 hours of continuous operation |
| Interface / Connectivity | USB, Ethernet (LAN), SD card slot |
| Operating Temperature | -10°C to +50°C |
| Model | MT9085A |
|---|

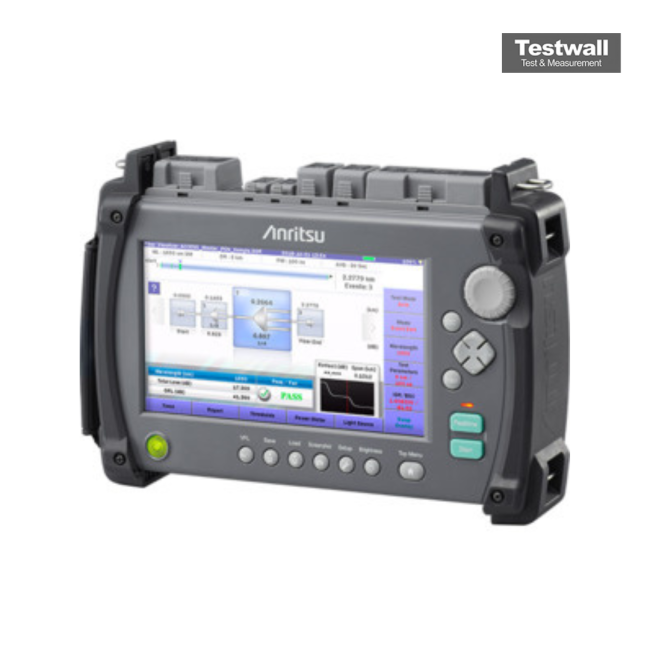

Equipped with a high-resolution OTDR module, the Anritsu MT9085A Access Master Std Dynamic Range OTDR Mainframe delivers precise fiber characterization for access and metro networks. Its standard dynamic range design supports singlemode testing with exceptional dead-zone performance and wavelength versatility at 1310 nm and 1550 nm. The rugged mainframe integrates an intuitive touchscreen interface, high-speed processing, and modular expansion for seamless field diagnostics and network validation.
Ideal for field technicians, this unit performs rapid OTDR sweeps to pinpoint fiber faults, measure attenuation, and verify splice integrity. Compact and battery-powered, it streamlines precise diagnostics on site.
Testwall can supply the used Anritsu MT9085A Access Master Std Dynamic Range OTDR Mainframe, fully tested. With expert support, Testwall ensures high-performance instrumentation, unmatched reliability and service quality. Please contact us directly if you need calibration or repair of this unit. ISO 9001:2015 certified.
