Anritsu MU181020A-001
| Attribute | Value |
|---|---|
| Bit Rate Range | 125 Mbit/s to 28.1 Gbit/s |
| Output Amplitude | 0.5 Vp-p to 3.5 Vp-p (variable) |
| Pattern Length | 2^7-1 to 2^31-1 PRBS, fixed patterns, and user-defined patterns |
| Interface Type | Plug-in module for MU181000A/B mainframe |
| Output Connector | SMA (female) |
| Rise/Fall Time | Less than 15 ps (typical, 20%–80%) |
| Jitter Injection | Supports sinusoidal jitter (SJ) and random jitter (RJ) injection |
| Operating Temperature | +5°C to +40°C |
| Power Consumption | Approximately 35 W (maximum) |
| Compliance/Standards | IEEE 802.3, OTU2, SONET/SDH, Fibre Channel, and other serial data standards |
| Model | MU181020A-001 |
|---|

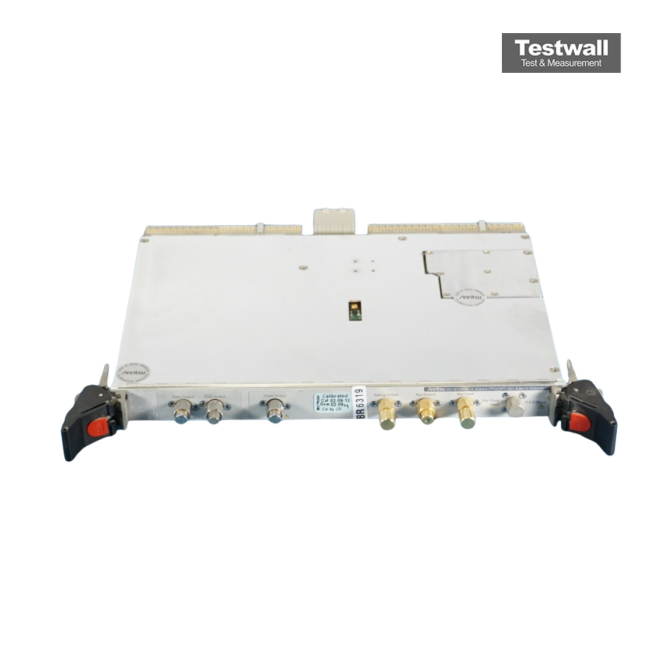

The Anritsu MU181020A-001 is a high-speed plug-in module for the MP1800A Signal Quality Analyzer, delivering pulse pattern generation up to 12.5 Gbit/s. It supports PRBS, zero-substitution, alternate, and sequence patterns with programmable mark ratio and logic control. Designed for use in Slot 1 or Slot 6, it can act as a master clock in multi-channel configurations, providing synchronized outputs for precision signal evaluation.
Ideal for high-speed optical and electrical interface testing, the MU181020A-001 ensures reliable BER measurement, eye-diagram analysis, and compliance verification. Engineers benefit from multi-channel synchronization and custom sequencing for advanced signal integrity studies.
Testwall can supply the used Anritsu MU181020A-001, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MU181020A-001.
