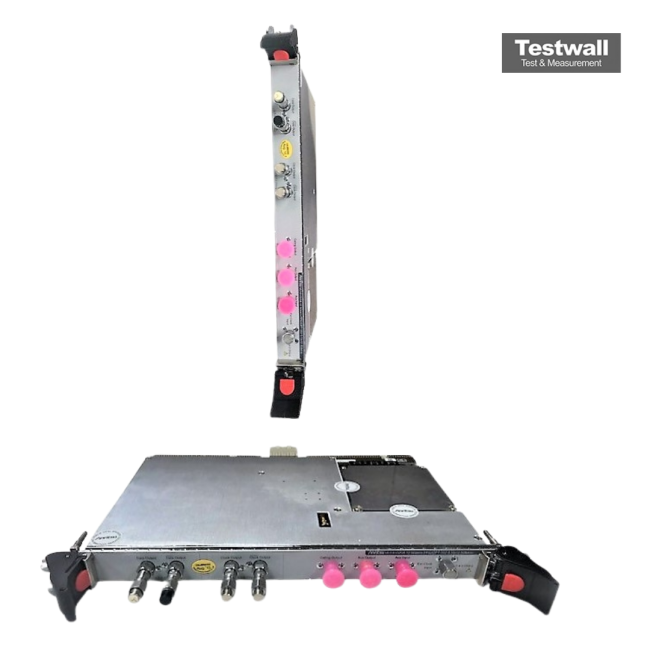

Anritsu MU181020A-002
| Attribute | Value |
|---|---|
| Bit Rate Range | 125 Mbit/s to 12.5 Gbit/s |
| Output Amplitude | 0.5 Vp-p to 2.0 Vp-p (into 50 Ω) |
| Data Output Connector | 2.92 mm (K) connector |
| Pattern Length | 2^7-1 to 2^31-1 PRBS, programmable word patterns |
| Jitter Injection | Sinusoidal Jitter (SJ), Random Jitter (RJ), Spread Spectrum Clocking (SSC) supported |
| Interface Compatibility | Compatible with MU181000A/B Mainframe (MP1800A Series) |
| Operating Temperature | +5°C to +40°C |
| Power Consumption | Approximately 30 W |
| Module Type | Plug-in Signal Quality Analyzer (SQA) module for MP1800A |
| Compliance/Standards | Supports 10GbE, OTU2, SONET/SDH, Fibre Channel testing standards |
| Model | MU181020A-002 |
|---|
The Anritsu MU181020A-002 is an external clock pulse pattern generator supporting data rates up to 12.5 Gbit/s. It provides full pattern capabilities including PRBS, mixed sequences, alternate, and zero‑substitution for robust BER and data integrity testing. This model is optimized for synchronized test setups requiring external timing references across high-speed interfaces.
With master/slave slot assignments, it enables multi-module coordination and advanced signal integrity workflows, making it ideal for engineering teams evaluating communication systems under real-world timing conditions.
Testwall can supply the used Anritsu MU181020A-002, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MU181020A-002.
