Anritsu
Anritsu MW9060
-85 dBm to +3 dBm Measurement Range
780 nm to 1650 nm Wavelength Range
Monochrome LCD with backlight Display
850, 1300, 1310, 1490, 1550, 1625 nm Wavelength Calibration Points
Universal adapter (FC, SC, ST compatible) Connector Interface
| Attribute | Value |
|---|---|
| Measurement Range | -85 dBm to +3 dBm |
| Wavelength Range | 780 nm to 1650 nm |
| Display | Monochrome LCD with backlight |
| Wavelength Calibration Points | 850, 1300, 1310, 1490, 1550, 1625 nm |
| Connector Interface | Universal adapter (FC, SC, ST compatible) |
| Power Supply | 4 x AA batteries or AC adapter |
| Battery Life | Approximately 20 hours continuous operation |
| Operating Temperature | -10°C to +50°C (14°F to 122°F) |
| Dimensions | 76 mm x 155 mm x 38 mm (W x H x D) |
| Weight | Approximately 350 g (including batteries) |
| Model | MW9060 |
|---|

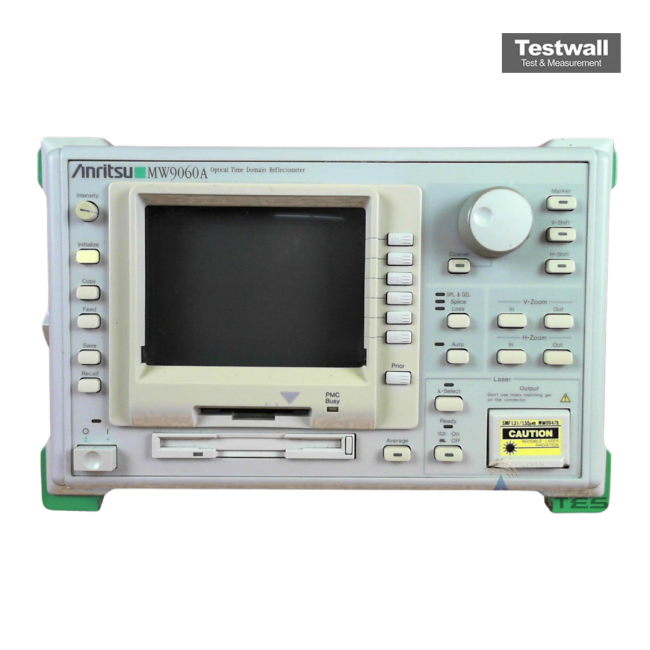

The Anritsu MW9060 is an OTDR mainframe designed for optical-time-domain reflectometry, enabling precise fault location, splice evaluation, and attenuation measurement in fiber networks. It supports modular wavelength plug-in units, making it adaptable for diverse testing environments.
Engineered for commissioning, maintenance, and repair, the MW9060 ensures reliable continuity checks and accurate distance or loss assessment in metro and core fiber systems.
Testwall can supply the used Anritsu MW9060, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MW9060.
