Anritsu MW98A
| Attribute | Value |
|---|---|
| Frequency Range | 1 MHz to 3 GHz |
| Measurement Functions | Power, Frequency, VSWR, Return Loss, Cable Loss |
| Dynamic Range | -50 dBm to +20 dBm |
| Display Type | Color LCD Touchscreen |
| Interface Connector | N-Type Female (50 Ohm) |
| Power Supply | Battery (Li-Ion) or AC Adapter (100–240V AC) |
| Battery Life | Approximately 3 hours of continuous operation |
| Operating Temperature | -10°C to +50°C (14°F to 122°F) |
| Dimensions | Approximately 215 mm x 110 mm x 45 mm |
| Weight | Approximately 1.2 kg (including battery) |
| Model | MW98A |
|---|

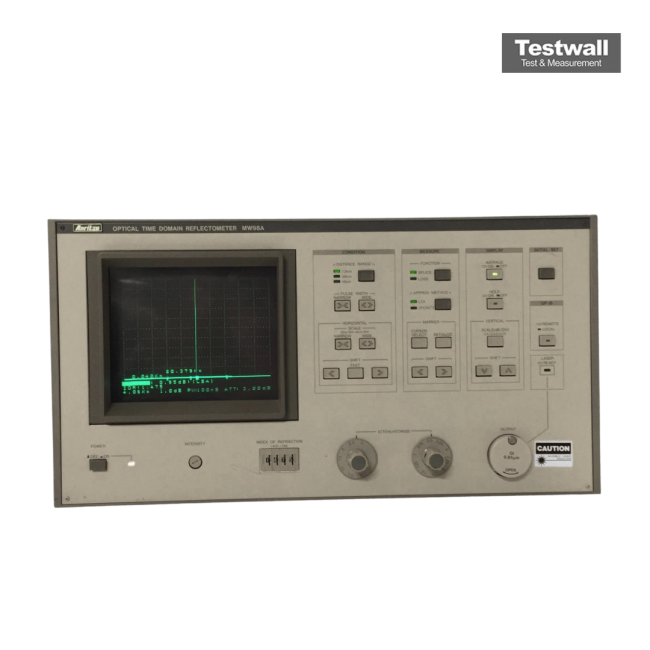

The Anritsu MW98A delivers precise optical measurements including fault position, splice loss, splice position, and fiber loss. It supports multi-mode fibers at 0.85µm and 1.3µm, and single-mode fibers at 1.3µm and 1.5µm. With a 72km measurement range and 16dB dynamic range, it offers 1µm distance resolution and 0.01dB loss precision. A 16-bit CPU enhances speed for averaging and loss analysis, while plug-in optical units and an intuitive CRT display simplify use.
Designed for applications from R&D to production, cable installation, and maintenance, the MW98A ensures reliable performance with long-distance detection, high-speed averaging, and optical masking capabilities.
Testwall can supply the used Anritsu MW98A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MW98A.
