Anritsu S113C
| Attribute | Value |
|---|---|
| Frequency Range | 2 MHz to 1.6 GHz |
| Measurement Type | Cable and Antenna Analyzer (Site Master) |
| Return Loss Range | 0 to 60 dB |
| VSWR Range | 1.00 to 65.00 |
| Cable Loss Range | 0 to 30 dB |
| Distance-to-Fault (DTF) Range | 0 to 1500 meters (in air) |
| Display | Sunlight-readable color LCD |
| Battery Life | Approximately 2.5 hours with internal NiMH battery pack |
| Connector Type | N-Type (female) RF connector |
| Operating Temperature | -10°C to +55°C (14°F to 131°F) |
Anritsu S113C Options:
- S113C - Option 5 - Power Monitor to measure power – external detector needed
| Model | S113C |
|---|

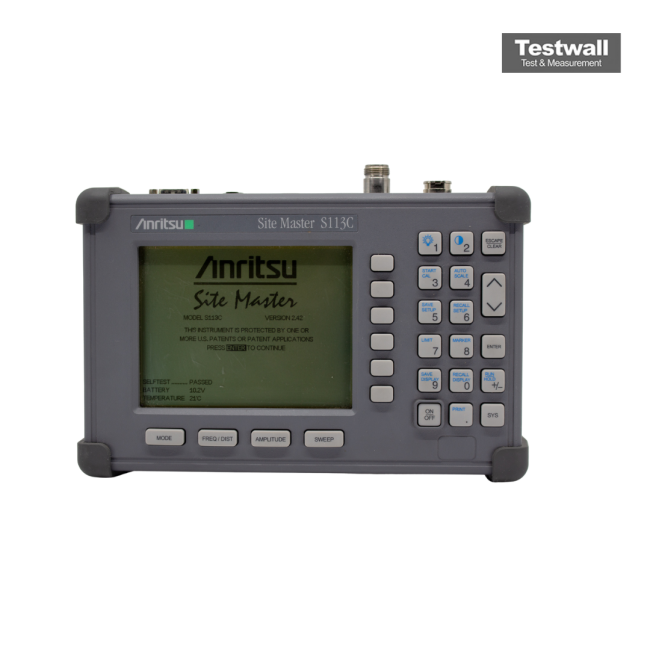

The Anritsu S113C Site Master covers the 2 MHz to 1.6 GHz frequency range, offering precise detection and analysis of RF cable feed-line and antenna system faults. It supports return loss, VSWR, cable loss, and distance-to-fault (DTF) testing with patented RF interference rejection for reliable results even in high RF environments. The instrument comes equipped with data analysis software, a rechargeable battery, AC/DC supply, and multiple accessories for professional use.
Ideally suited for VHF, cellular, and GPS applications, the S113C is designed for commissioning and maintaining wireless communication infrastructures. Its optional power meter enables fast and accurate power measurements.
Testwall can supply the used Anritsu S113C, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu S113C.
