Anritsu S114B
| Attribute | Value |
|---|---|
| Frequency Range | 400 MHz to 1.6 GHz |
| Dynamic Range | Up to 65 dB |
| Distance Range | Up to 4000 meters (depending on cable type) |
| Measurement Modes | Cable Loss, Return Loss, VSWR, Distance-to-Fault (DTF) |
| Connector Type | N-Type Female (RF connector) |
| Display | 7-inch sunlight-viewable color LCD touchscreen |
| Battery Life | Approximately 4 hours with internal lithium-ion battery |
| Operating Temperature | -10°C to +55°C (14°F to 131°F) |
| Weight | Approximately 1.9 kg (4.2 lbs) including battery |
| Data Storage | Internal memory plus USB and micro-SD card support |
Anritsu S114B Options:
- S114B - Option 5 - RF Watt Meter Power Monitor (RF Detector not included)
| Model | S114B |
|---|

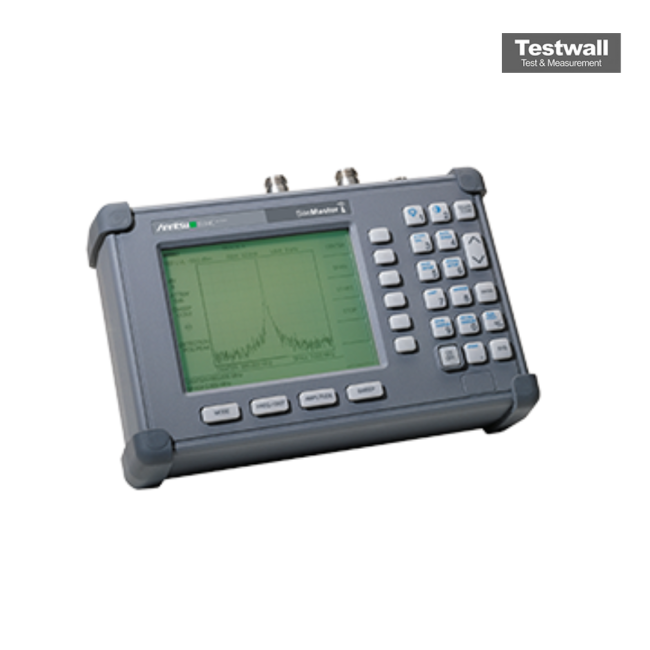

The Anritsu S114B Site Master is a portable cable and antenna analyzer offering broadband frequency coverage from 5 MHz to 20 GHz. Its super-heterodyne receiver architecture ensures high sensitivity and dynamic range for precise spectrum analysis. It provides return loss, insertion loss, VSWR, and distance-to-fault diagnostics for RF and microwave installations.
With calibration routines, markers, limit functions, a backlit display, and optional power monitoring, the S114B is designed for efficient antenna alignment and fault location in microwave, satellite, and high-frequency infrastructure.
Testwall can supply the used Anritsu S114B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu S114B.
