Anritsu S330
| Attribute | Value |
|---|---|
| Frequency Range | 400 MHz to 3.3 GHz |
| Measurement Modes | Cable & Antenna Analyzer, Distance-to-Fault (DTF), Return Loss, VSWR, Cable Loss |
| Dynamic Range | Up to 80 dB |
| Distance-to-Fault Range | Up to 1500 meters (depending on cable type) |
| Display | 7-inch sunlight-readable color touchscreen LCD |
| Battery Life | Approximately 4 hours of continuous operation with internal rechargeable Li-ion battery |
| Connector Type | N-Type (female) RF port |
| Data Storage | Internal memory plus USB and SD card support for trace and configuration storage |
| Operating Temperature | -10°C to +55°C |
| Weight | Approximately 1.8 kg (3.97 lbs) including battery |
| Model | S330 |
|---|

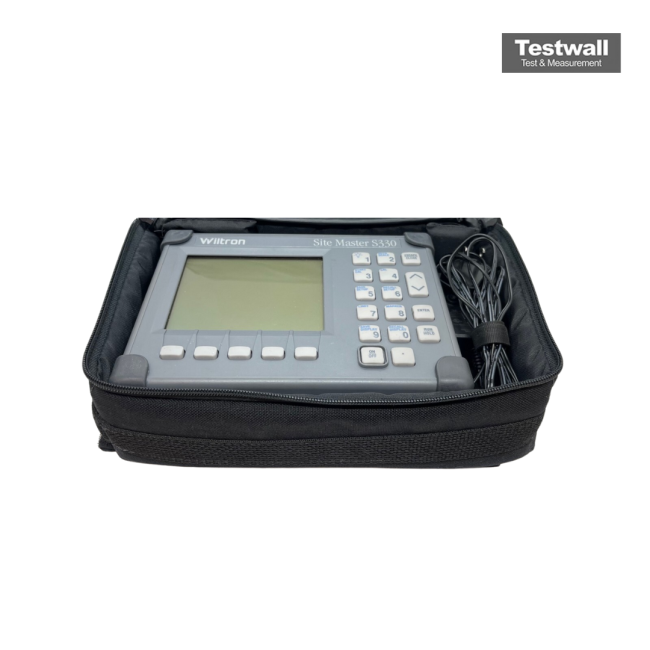

The Anritsu S330 Site Master is a handheld SWR/RL and Distance-To-Fault analyzer, featuring a built-in synthesized signal source and optional power monitor. With its keyed interface and LCD display, it delivers graphical scans of SWR, return loss, and fault-distance across 700–3300 MHz, enhanced with markers, limit lines, scaling, and back-lighting for low-light clarity.
An internal rechargeable battery provides up to two hours of continuous operation, while an energy conservation mode extends use across an eight-hour workday. It also supports 12.5 VDC power input to operate and charge simultaneously for reliable field readiness.
Testwall can supply the used Anritsu S330 Site Master, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu S330 Site Master.
