Anritsu S332C
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 3 GHz |
| Cable and Antenna Analyzer | Built-in Site Master cable and antenna analyzer with 2-port transmission measurement capability |
| Spectrum Analyzer Range | 100 kHz to 3 GHz integrated spectrum analyzer |
| Dynamic Range | Greater than 80 dB dynamic range for accurate measurements |
| Display | 7-inch sunlight-readable color LCD display with 800 x 480 resolution |
| Battery Life | Approximately 3 hours of continuous operation with internal lithium-ion battery |
| Connector Type | N-Type (f) RF connector input |
| Weight | Approximately 3.0 kg (6.6 lbs) including battery |
| Data Storage | Internal memory with USB port for external storage and data transfer |
| Operating Temperature | -10°C to +55°C (14°F to 131°F) |
Anritsu S332C Options:
- S332C - Option 5 - RF Power Monitor (RF Detector not included)
| Model | S332C |
|---|

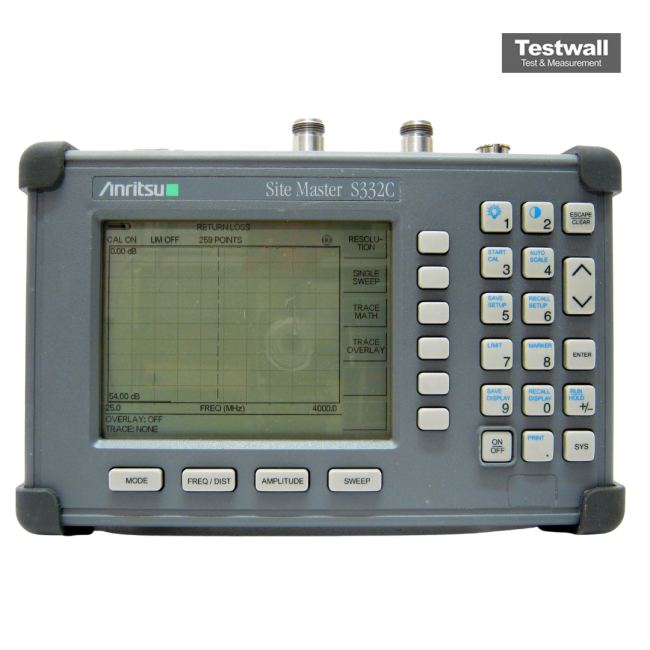

The Anritsu S332C Site Master covers 25 MHz to 4000 MHz, offering precise fault detection in RF cable feed-lines and antenna systems. It combines spectrum analysis (100 kHz to 3 GHz) with return loss, SWR, cable loss, and distance-to-fault measurements, delivering powerful diagnostic performance. Equipped with a synthesized signal generator, lightweight design (1.36–2.14 kg), and RS232 interface, it is suitable for wireless systems like VHF, GSM, ISM, and WLL.
Designed for field engineers and technicians, the S332C streamlines troubleshooting of coverage, interference, and signal path issues. It comes complete with analysis software, carrying case, rechargeable battery, AC/DC power supply, and cigarette lighter adapter for flexible use.
Testwall can supply the used Anritsu S332C, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu S332C.
