Anritsu S332D
| Attribute | Value |
|---|---|
| Frequency Range | 25 MHz to 3.3 GHz |
| Measurement Functions | Cable & Antenna Analyzer, Spectrum Analyzer, Power Meter |
| Dynamic Range | Up to 90 dB |
| Display | 7-inch color LCD touchscreen, 800 x 480 resolution |
| Return Loss Measurement Range | 0 to 60 dB |
| Battery Life | Approximately 3 hours with standard battery pack |
| Connector Type | N-Type (female), 50 Ohm |
| Operating Temperature | -10°C to +55°C (14°F to 131°F) |
| Weight | Approximately 3.0 kg (6.6 lbs) with battery |
| Data Storage | Internal memory plus USB and CompactFlash card support |
| Model | S332D |
|---|

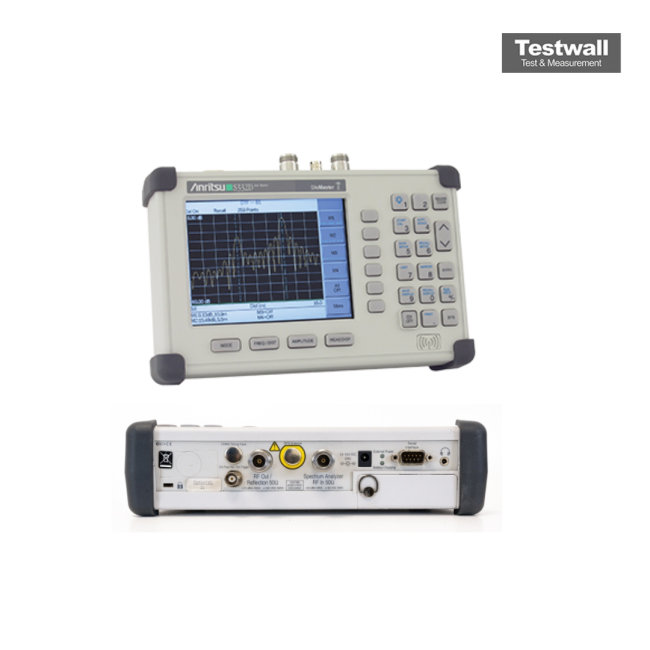

The Anritsu S332D Cable and Antenna Analyzer provides comprehensive testing with spectrum analysis from 100 kHz to 3 GHz, Return Loss/SWR, Cable Loss, and Distance-to-Fault (DTF) via Frequency Domain Reflectometry. It includes smart button functions for Field Strength, Occupied Bandwidth, Channel Power, Adjacent Channel Power Ratio, Interference Analysis, and Carrier-to-Interference ratio.
Ideal for wireless field measurements, it supports applications including VHF, broadcasting, paging, cellular, PCS/GSM, 3G, ISM, WLAN, and WLL. Its rapid sweep speed aids interference detection and transmitter performance testing with high accuracy.
Testwall can supply the used Anritsu S332D, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu S332D.
