Anritsu S810D
| Attribute | Value |
|---|---|
| Frequency Range | 625 MHz to 1600 MHz |
| Dynamic Range | Up to 65 dB |
| Distance Range | Up to 3000 meters (cable loss dependent) |
| Return Loss Measurement Range | 0 to 65 dB |
| Output Power | 0 dBm nominal |
| Connector Type | Type N Female (RF output/input) |
| Display | 7-inch color LCD touchscreen |
| Battery Life | Approximately 2 hours with internal battery pack |
| Operating Temperature | -10°C to +55°C (14°F to 131°F) |
| Weight | Approximately 2.7 kg (5.95 lbs) with battery |
Anritsu S810D Options:
- S810D - /5 - Power Monitor (Detector not included)
- S810D - /11NF - Replaces standard K(f) Test Port Connector with N(f)
- S810D - /31 - GPS Receiver (Antenna not included)
| Model | S810D |
|---|

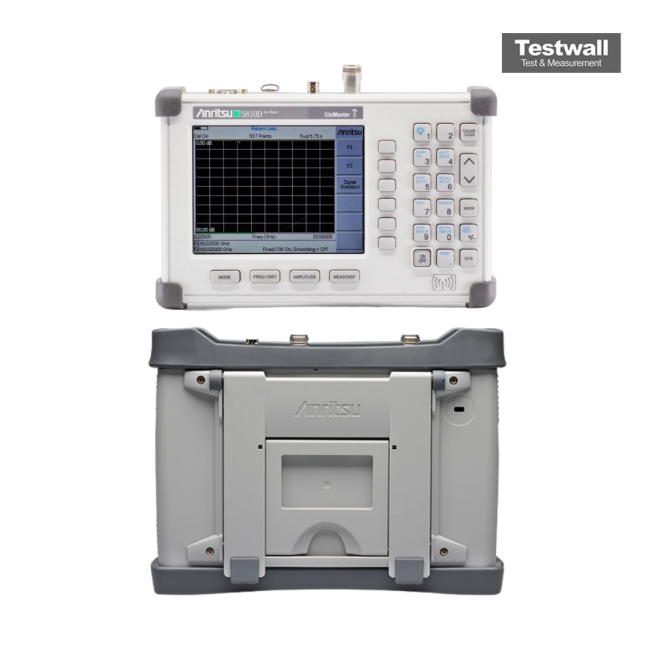

The Anritsu Site Master S810D, covering 25 MHz to 10.5 GHz, is a one-port microwave transmission line and antenna analyzer tailored for installation, verification, troubleshooting, and repair of communication systems. Featuring VSWR, return loss, cable loss, and distance‑to‑fault (DTF) measurements via frequency domain reflectometry (FDR), it ensures precision even amid strong RF interference, with frequency accuracy of ≤3 ppm, resolution down to 10 kHz, and rapid sweeps of ≤2 s for 517 points.
Ideal for wireless and defense fieldwork, the S810D offers rugged, portable performance with optional waveguide support, GPS stamping, power monitoring, and software tools for trend analysis and professional reporting.
Testwall can supply the used Anritsu Site Master S810D, fully tested. With expert support and global delivery, Testwall ensures high‑performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu Site Master S810D.
