Anritsu

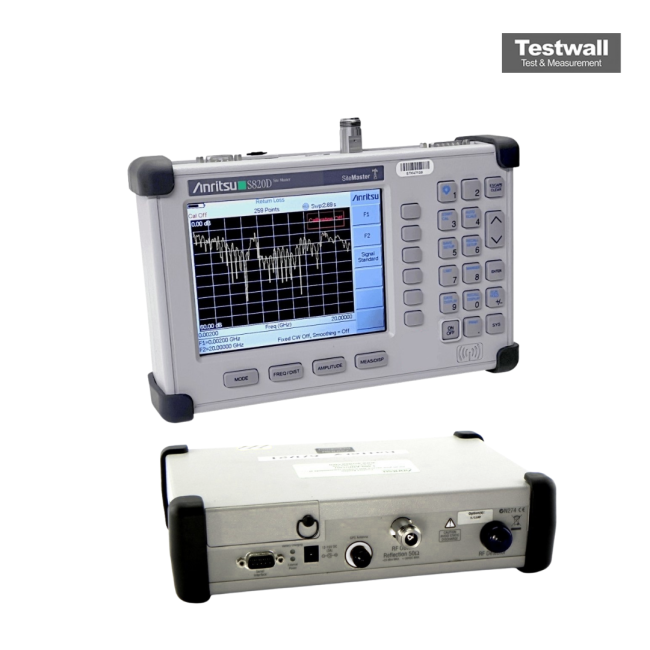

Anritsu S820D
Cable & Antenna Analyser
25 MHz to 20 GHz Frequency Range
Up to 120 dB Dynamic Range
Up to 3,000 meters (cable and antenna analyzer mode) Distance Range
Cable & Antenna Analysis, Vector Network Analysis, Power Meter, Spectrum Analysis Measurement Modes
N-Type (f), 50 Ohm Connector Type
| Attribute | Value |
|---|---|
| Frequency Range | 25 MHz to 20 GHz |
| Dynamic Range | Up to 120 dB |
| Distance Range | Up to 3,000 meters (cable and antenna analyzer mode) |
| Measurement Modes | Cable & Antenna Analysis, Vector Network Analysis, Power Meter, Spectrum Analysis |
| Connector Type | N-Type (f), 50 Ohm |
| Display | 7-inch sunlight-readable color LCD touchscreen |
| Battery Life | Up to 4 hours with standard lithium-ion battery pack |
| Operating Temperature | -10°C to +55°C |
| Weight | Approximately 3.0 kg (6.6 lbs) including battery |
| Data Storage & Connectivity | USB, LAN (Ethernet), and internal memory for trace and data storage |
Anritsu S820D Options:
- S820D - S8X0D/5 - Power Monitor (Detector not included)
- S820D - S8X0D/11NF - Replaces standard K(f) Test Port Connector with N(f)
- S820D - S8X0D/31 - GPS Receiver (Antenna not included)
| Model | S820D |
|---|
The Anritsu S820D Site Master covers 2 MHz to 20 GHz and excels in rugged field conditions for wireless and defense applications. It features true 2-port cable loss measurements, GPS-based trace stamping, TFT daylight-viewable display, and real-time DTF with FDR technology.
Compact and handheld, it includes a 1.5-hour battery, multilingual interface, RS232, 21 saved test setups, and up to 200 trace saves.
Testwall can supply the used Anritsu S820D, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu S820D
