Audio Precision AUX-0100
Eight Channel Low Pass Filter
Audio Precision APx Series Analyzers Compatible Instruments
Auxiliary Control and I/O Expansion Module Function
8 DC control voltage outputs Number of Auxiliary Outputs
8 DC voltage measurement inputs Number of Auxiliary Inputs
0 to +5V DC Output Voltage Range
| Attribute | Value |
|---|---|
| Compatible Instruments | Audio Precision APx Series Analyzers |
| Function | Auxiliary Control and I/O Expansion Module |
| Number of Auxiliary Outputs | 8 DC control voltage outputs |
| Number of Auxiliary Inputs | 8 DC voltage measurement inputs |
| Output Voltage Range | 0 to +5V DC |
| Input Voltage Range | 0 to +5V DC |
| Interface/Connection | USB connection to host PC |
| Software Integration | Fully integrated with Audio Precision APx500 software |
| Digital I/O | 8 digital input/output lines for device control and triggering |
| Form Factor | Compact external desktop unit designed for bench-top use |
Audio Precision AUX-0100 Options:
- AUX-0100 - RAK-100 - Rack-mount shelf for AUX-0100
| Model | AUX-0100 |
|---|

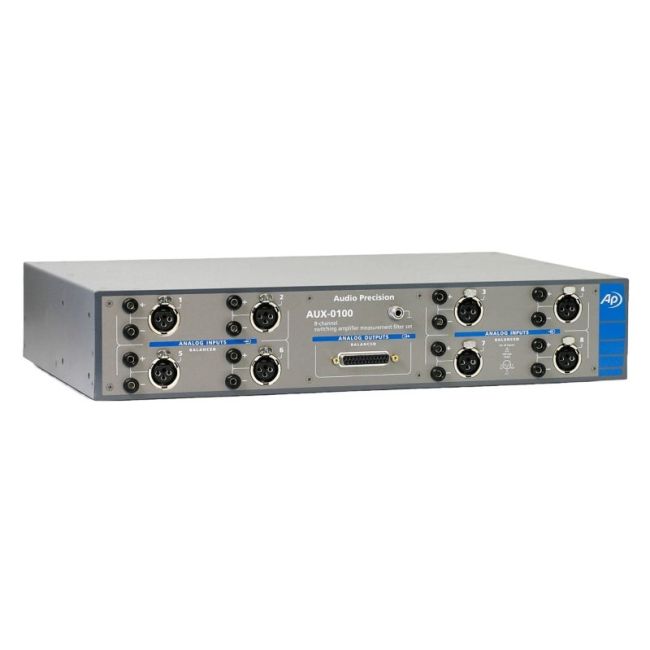

The Audio Precision AUX-0100 Eight Channel Low Pass Filter (formerly known as APx581), is a passive switching amplifier. Measurement filters are designed to be inserted between the device under test and an analyzer input, to reduce out-of-band switching signal components before measurement.
The AUX-0100 is used for mMeasurement of switching amplifiers, and measurement of analog signals with high amounts of out-of-band noise.
Highlights of the Audio Precision AUX-0100 (APx581), include:
- eight channel, 20 Hz to 20 kHz passband
- Passive design for optimal performance
- Custom inductors designed for power handling and minimizing low-frequency distortion
- Flat response
- Small insertion loss
- Compatible with both balanced and unbalanced amplifiers and analyzers
