Bird

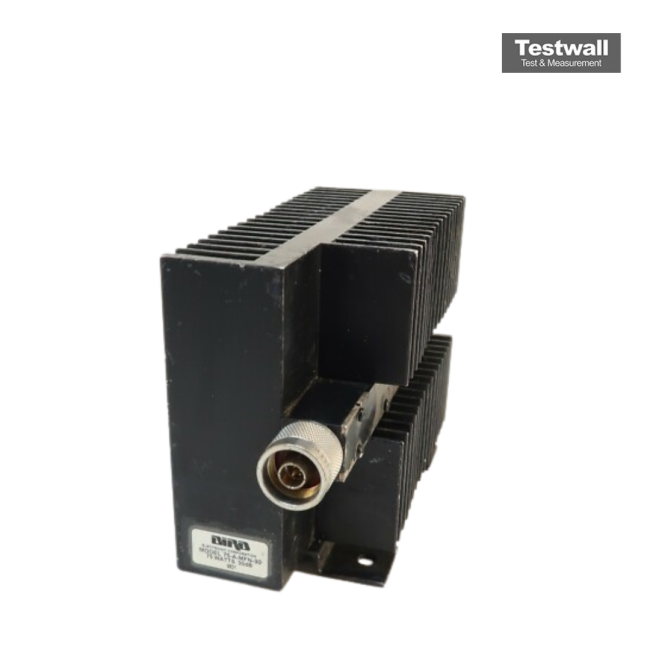

Bird 75-A-MFN-30
Bi-Directional Attenuator.
DC - 3 GHz Frequency Range
75 Ohm Impedance
30 Watts Power Rating
Male F to N Female Connector Type
1.15:1 Maximum VSWR
| Attribute | Value |
|---|---|
| Frequency Range | DC - 3 GHz |
| Impedance | 75 Ohm |
| Power Rating | 30 Watts |
| Connector Type | Male F to N Female |
| VSWR | 1.15:1 Maximum |
| Insertion Loss | 0.3 dB Maximum |
| Operating Temperature | -40°C to +85°C |
| Body Material | Nickel-Plated Brass |
| Contact Material | Gold-Plated Beryllium Copper |
| RoHS Compliant | Yes |
| Model | 75-A-MFN-30 |
|---|
The Bird 75-A-MFN-30 is a precision coaxial adapter designed for secure RF connections, delivering minimal insertion loss and excellent frequency compatibility. Built with rugged construction, it ensures long-lasting reliability in demanding test environments.
Ideal for laboratory and field use, this adapter maintains signal integrity across a broad frequency range, supporting efficient testing and measurement processes with consistent performance.
Testwall can supply the used Bird 75-A-MFN-30, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Bird 75-A-MFN-30.
