BK Precision 1672
| Attribute | Value |
|---|---|
| Output Voltage Range | 0 - 72V DC |
| Output Current Range | 0 - 1.5A |
| Output Power | 108W Maximum |
| Voltage Regulation (Line) | ≤ 0.01% + 3mV |
| Voltage Regulation (Load) | ≤ 0.01% + 3mV |
| Current Regulation (Line) | ≤ 0.2% + 3mA |
| Current Regulation (Load) | ≤ 0.2% + 3mA |
| Ripple and Noise (Voltage) | ≤ 1mV RMS |
| Display Type | Dual 4-digit LED display for voltage and current |
| Input Voltage | 115V AC / 230V AC, 50/60Hz |
| Model | 1672 |
|---|

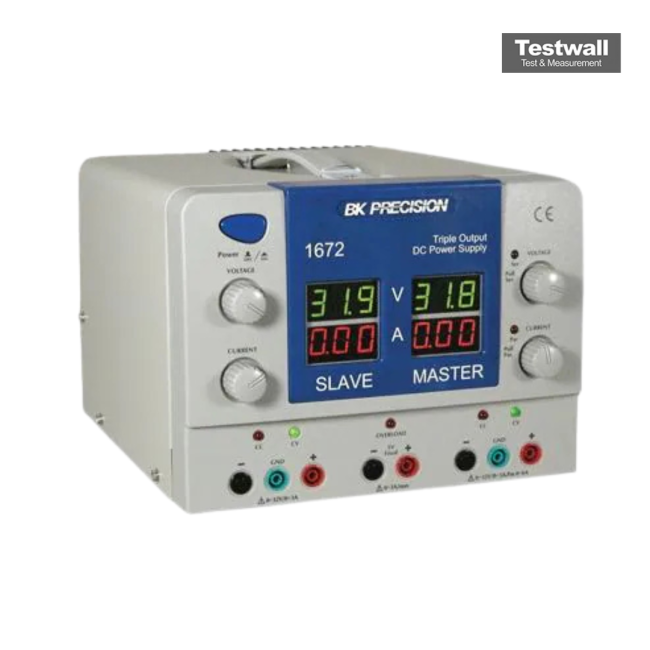

The BK Precision 1672 is a triple-output DC bench power supply designed with two variable outputs (0–32 VDC at 3 A each) and a fixed 5 VDC at 3 A channel. It supports both Constant Voltage (CV) and Constant Current (CC) modes, with automatic crossover. Its quad LED display provides simultaneous voltage and current readings for both variable channels, while the rugged build ensures reliability. The unit operates on 115/230 VAC and offers excellent regulation, low ripple (<1 mVrms), and overload indication for safe, precise operation.
With series and parallel tracking, the 1672 allows voltage or current doubling, ideal for electronics testing, lab use, or powering sensitive logic circuits. Banana jack terminals, fine current limiting, and compact dimensions (230×170×310 mm, 5.7 kg) enhance versatility and ease of use.
Testwall can supply the used BK Precision 1672, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the BK Precision 1672.
