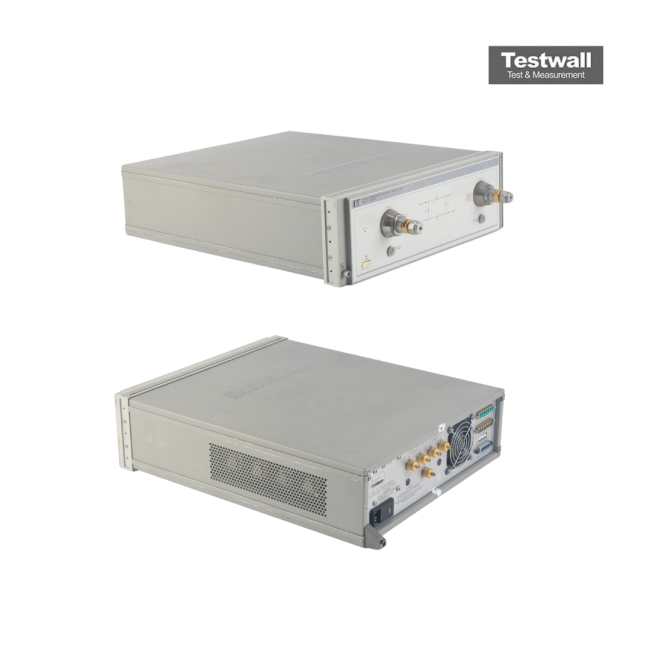

Keysight (Agilent) 8514B
| Attribute | Value |
|---|---|
| Frequency Range | 45 MHz to 40 GHz |
| Connector Type | 2.4 mm |
| Number of Ports | 2-Port Test Set |
| Compatible Instrument | HP/Agilent/Keysight 8510 Series Network Analyzers |
| Characteristic Impedance | 50 Ohm |
| Maximum Input Power | +26 dBm |
| Dynamic Range | Up to 100 dB |
| Test Set Type | S-Parameter Test Set |
| Measurement Parameters | S11, S21, S12, S22 (Full 2-Port S-Parameters) |
| Operating Temperature Range | 0°C to 55°C |
| Model | 8514B |
|---|
The Keysight (Agilent) 8514B is a precision-engineered test set with an advanced architecture that provides a dedicated reference channel for each incident port, ensuring highly accurate measurements. It features a built-in electronic RF switch for seamless path selection and includes 3.5 mm connectors for optimal connectivity. Additionally, it supports the application of external DC bias to test port center conductors, essential for active device testing.
Ideal for advanced RF testing environments, the 8514B's integrated switching and flexible biasing capabilities support a broad range of test configurations.
Testwall can supply the used Keysight (Agilent) 8514B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 8514B.
