BK Precision 8610
| Attribute | Value |
|---|---|
| DC Voltage Range | Up to 150V |
| DC Current Range | Up to 240A |
| Maximum Power | 2400W |
| Minimum Operating Voltage | 0.1V |
| Minimum Operating Current | 0.01A |
| Operating Modes | CC, CV, CR, CP |
| Input Terminals | Front and Rear |
| Interface | USB, RS-232, Analog (DB-25) |
| Display | Vacuum Fluorescent Display (VFD) |
| Dimensions (W x H x D) | 425 mm x 88 mm x 498 mm (2U) |
| Model | 8610 |
|---|

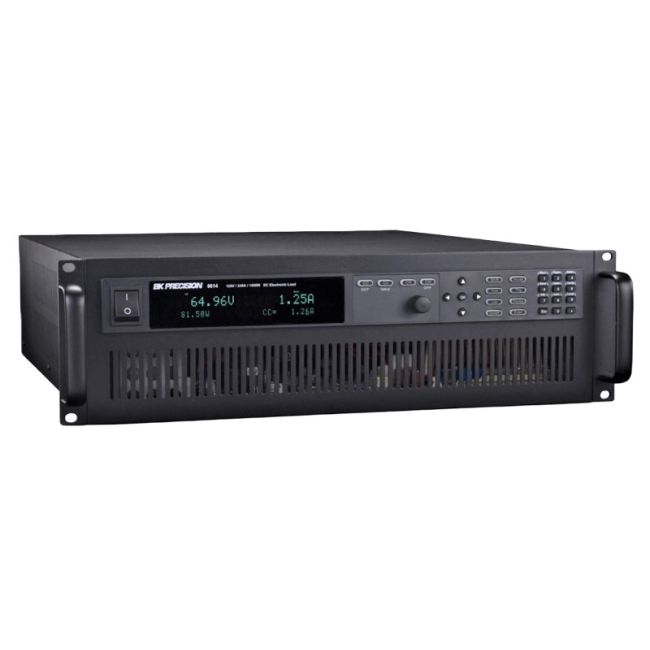

The BK-Precision 8610 is a programmable DC load from the 8600/B series, delivering up to 750 W with a maximum input voltage of 120 V and peak current of 120 A in high-current mode. It supports operating modes including CC, CV, CR, and CW/CP. Featuring transient operation up to ~25 kHz, 16-bit high-resolution measurements, battery test functions, and advanced trigger/remote options, it is designed for precise evaluation of batteries, power supplies, solar modules, and DC-DC converters.
The instrument offers list mode for sequential testing, CR-LED simulation for LED load behavior, and remote interfaces such as USB, RS-232, optional GPIB, and analog control. This versatility ensures efficient and reliable testing across various applications.
Testwall can supply the used BK-Precision 8610, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the BK-Precision 8610.
