Boonton 4400A
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 18 GHz |
| Dynamic Range | -70 dBm to +20 dBm |
| Measurement Speed | Up to 100,000 readings per second |
| Number of Channels | 2 channels |
| Display | Color LCD touchscreen display |
| Interfaces | USB, LAN (Ethernet), GPIB |
| Trigger Modes | Free run, internal, external, and manual triggering |
| Modulation Analysis | Supports CW, pulsed, and modulated signal measurements |
| Power Accuracy | ±0.5% (typical) |
| Operating Temperature | 0°C to 55°C |
Boonton 4400A RF Peak Power Meter Options:
- 4400A - 01 - Second Measurement Channel, Front Panel
- 4400A - 02 - One Measurement Channel, Rear Panel
- 4400A - 03 - Second Measurement Channel, Rear Panel
- 4400A - 04 - Delay By Events Trigger Qualifier
- 4400A - 05 - Ttl External Trigger Level
| Model | 4400A |
|---|

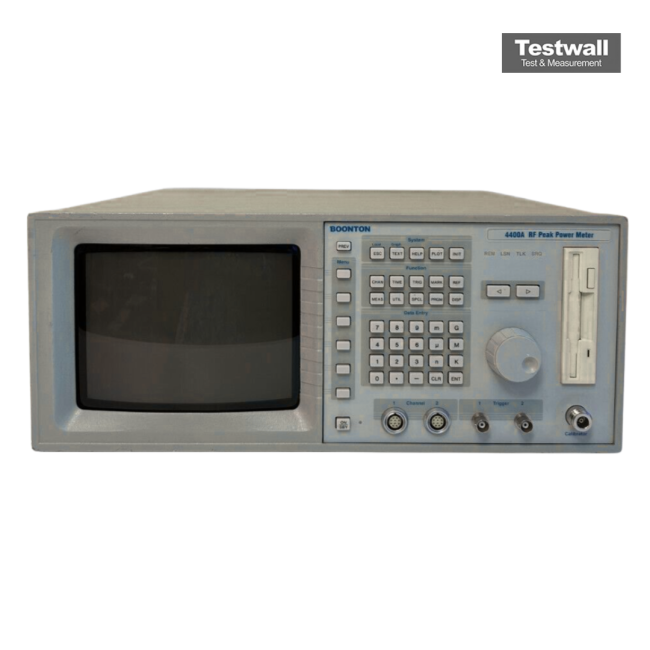

The Boonton 4400A RF Peak Power Meter features a 30 MHz–40 GHz frequency span, a > 60 dB dynamic range sensor-dependent without range switching, 1 Msa/s sampling, 14 automatic measurements including peak, average, and dwell power, flexible triggering, channel math, a color VGA display, PC-compatible 1.44 MB floppy drive, and GPIB connectivity for comprehensive RF time-domain analysis.
Optimized for radar, pulse bursts, GSM/TDMA, and broadcast TV/radio transmitters, it captures and records power-versus-time waveforms with fast display updates, front-panel setups storage, and disk-based trace export for effortless documentation and seamless GPIB data acquisition.
Testwall can supply the used Boonton 4400A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Boonton 4400A.
