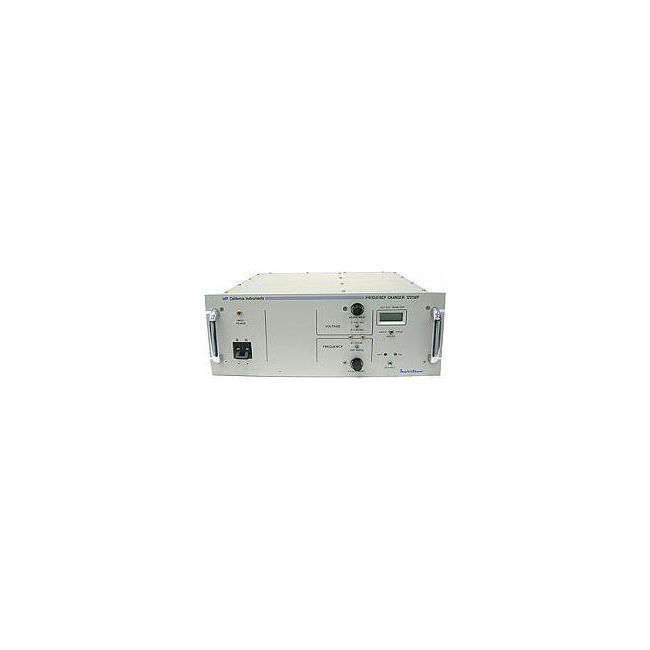

California Instruments 1201WP
AC Power Source, 1200 VA, 1 Phase
1200 VA Power Output
0 to 300 VAC Output Voltage Range
45 Hz to 500 Hz Output Frequency Range
105 to 132 VAC / 210 to 264 VAC (single phase) Input Voltage
47 Hz to 63 Hz Input Frequency
| Attribute | Value |
|---|---|
| Power Output | 1200 VA |
| Output Voltage Range | 0 to 300 VAC |
| Output Frequency Range | 45 Hz to 500 Hz |
| Input Voltage | 105 to 132 VAC / 210 to 264 VAC (single phase) |
| Input Frequency | 47 Hz to 63 Hz |
| Output Current (Max) | 4 A RMS at 300 VAC |
| Waveform | Sine Wave |
| Programming Interface | GPIB (IEEE-488) and RS-232 |
| Harmonic Distortion (THD) | Less than 0.5% at full load |
| Operating Temperature | 0°C to 40°C |
| Model | 1201WP |
|---|
California Instruments 1201WP AC Power Source The California Instruments 1201WP AC power source provides a low cost, convenient source of international power for testing products which are exported to countries. The unit is sufficiently portable that it can be moved between work stations or lab positions as needed. A digital display allows monitoring of RMS output voltage, frequency and RMS load cur. Output voltage on the Calfornia Instruments 1201WP is adjustable from 0 to 260 volts at frequencies of 47 to 500 Hz. Output power is delivered to a terminal block on the rear panel of the unit. Internal jumpers allow operation from either 115 or 230 VAC. Input frequency can vary from 45 to 440 Hz. Unless otherwise noted, the California Instruments 1201WP AC power source can provide 100% of full scale output voltage and with 115 or 230 VAC input power. Specifications of the California Instruments 1201P AC Power Source includes: See Datasheet for Full Specifications
