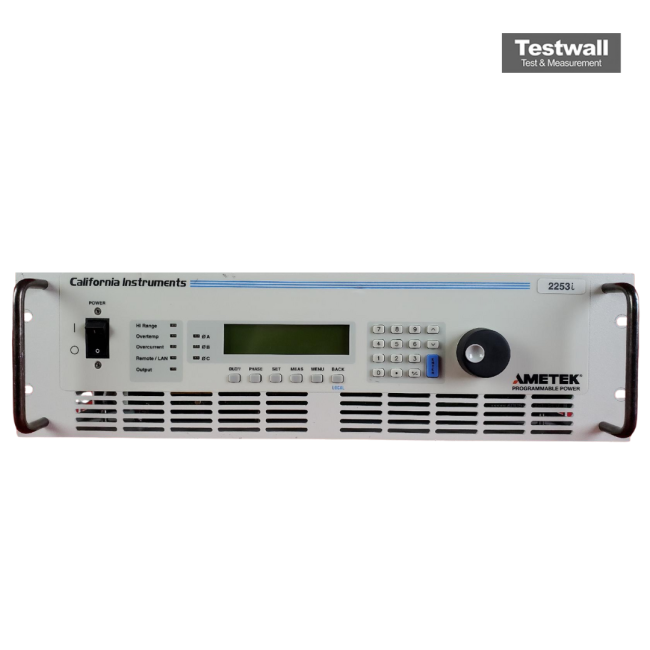

California Instruments 2253I
| Attribute | Value |
|---|---|
| Power Output | 2250 VA |
| Output Voltage Range | 0 to 300 VAC |
| Output Frequency Range | 45 Hz to 500 Hz |
| Number of Phases | Single Phase |
| Output Current (Max) | 10 A RMS |
| Input Voltage | 105–125 VAC / 210–250 VAC |
| Input Frequency | 47 Hz to 63 Hz |
| Total Harmonic Distortion (THD) | Less than 0.5% at full load |
| Programming Interface | IEEE-488 (GPIB) and RS-232 |
| Form Factor | Benchtop / Rack Mountable |
California Instruments 2253i Single Phase AC Power Supply Options:
- 2253I - 160 - Rtca/Do-160D/E And Eurocae Test Firmware
- 2253I - 704 - Mil Std 704D/E Test Firmware
- 2253I - 704F - Mil Std 704 Revision A-F Test Firmware/Software
- 2253I - ABD - Airbus Directive 0100.1.8 Tests
- 2253I - ABL - Able Command
- 2253I - AMD - Airbus Amd-24C Test
- 2253I - B787 - Boeing 787B3-0147 Tests
- 2253I - EXS - External Sync Input
- 2253I - LF - Limits Maximum Frequency To 500HZ
- 2253I - LKM - Clock/Lock Master
- 2253I - LKS - Clock/Lock Auxiliary
- 2253I - MODE - Allows All Three Amplifier Outputs To Be Combined On Phase A Output Terminal
- 2253I - RPF - Remote Programming Frequency (0-10 V Dc)
- 2253I - RPV - Remote Programming Voltage (0-10 V Dc)
- 2253I - WHM - Watt-Hour Measurement
| Model | 2253I |
|---|
The California Instruments 2253i delivers up to 2.25 kVA of total output power (750 VA per phase) in single- or three-phase AC modes, offering up to 300 Vrms and 6.5 Arms per phase and a DC output capability of 400 Vdc at 3.25 Adc per phase (500 W per output), enabling precise, stable voltage and current for demanding applications.
With a versatile frequency range from 16 Hz to 1 kHz and rapid response time, the 2253i excels in reliability and performance testing, making it ideal for R&D, quality assurance, and production environments that require accurate waveform generation and power analysis.
Testwall’s expert support, global delivery, and rigorous, fully tested validation of the used California Instruments 2253i ensure unmatched reliability and service quality, setting Testwall apart from competitors in providing high-performance AC power solutions and responsive aftermarket services.
