California Instruments XDS30-167
| Attribute | Value |
|---|---|
| Output Power | 30 kVA |
| Output Voltage Range | 0 - 167 Vrms (AC), 0 - 236 Vdc |
| Output Current (Max) | 180 Arms per phase |
| Output Frequency Range | DC, 16 Hz - 833 Hz |
| Number of Phases | Single-phase or Three-phase output |
| Input Voltage | 208 Vac / 220 Vac, Three-phase |
| Total Harmonic Distortion (THD) | Less than 0.5% at full linear load |
| Voltage Regulation | 0.1% or better |
| Programming Interface | IEEE-488 (GPIB), RS-232, USB |
| Cooling Method | Forced air cooling |
California Instruments XDS30-167 Options:
- XDS30-167 - -IF - GPIB / IEEE-488 interface programming option
- XDS30-167 - -400 - 400 ±10% volt line to line AC input
- XDS30-167 - -480 - 480 ±10% volt line to line AC input
- XDS30-167 - -AUX - Auxiliary control
- XDS30-167 - -RPV5 - Remote voltage programming, 0-5V
- XDS30-167 - -RPV10 - Remote voltage programming, 0-10V
- XDS30-167 - -RPC5 - Remote current programming, 0-5V
- XDS30-167 - -RPC10 - Remote current programming, 0-10V
| Model | XDS30-167 |
|---|

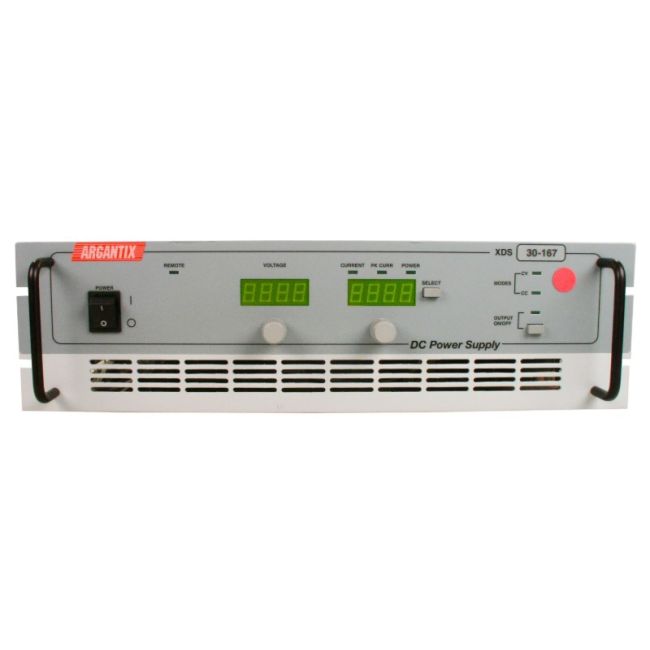

California Instruments XDS30-167 DC Power Supply
The California Instruments XDS30-167 DC Power Supply is a compact and powerful power supply that can deliver upto 30 volts and 167 amps of continuous power. Despite the high power density of this design, the XDS30-167 provides a low noise, stable output. With excellent output regulation and accuracy, California Instruments XDS30-167 DC Power Supply supports a wide variety of DC power applications including communications, semiconductors, automotive, information technology and industrial.
California Instruments XDS30-167 DC Power Supply is easy to operate with it's simple menu driven operation and familiar rotary controls for setting voltage and current. XDS30-167 comes with Windows GUI software. This GUI program offers additional functionalities like Output Sequencing, Data Logging and Pass/Fail Testing. The standard RS232C serial interface supports remote control of all power supply functions and measurements and allows for easy integration into ATE systems. An optional GPIB interface is available as well. Overall California Instruments XDS30-167 is a reliable and versatile DC Power Supply that can meet the demanding needs of a variety of applications.
Specifications for the California Instruments XDS30-167 DC Power Supply Include:
| Voltage | 0-30 Volts |
| Current | 0-167 Amps |
| Accuracy | 0.05 V |
| RMS Noise | 15mv |
