Chroma 10533
SoftPanels for Chroma 63600 series Loads
IEC/EN 61000-4-11 Voltage Dips and Interruptions Test Function
0 to 300 Vrms Output Voltage Range
50/60 Hz Output Frequency
Up to 4500 VA Output Power
Single Phase Phase Configuration
| Attribute | Value |
|---|---|
| Function | IEC/EN 61000-4-11 Voltage Dips and Interruptions Test |
| Output Voltage Range | 0 to 300 Vrms |
| Output Frequency | 50/60 Hz |
| Output Power | Up to 4500 VA |
| Phase Configuration | Single Phase |
| Switching Time | Less than 20 µs |
| Waveform | Sine Wave |
| Interface | GPIB, RS-232 |
| Compliance Standards | IEC 61000-4-11, EN 61000-4-11 |
| Operating Temperature | 0°C to 40°C |
Chroma 63600 Options:
- 63600 - 63600-1 - Mainframe for single module
- 63600 - 63600-2 - Mainframe for 2 modules
- 63600 - 63600-5 - Mainframe for 5 modules (Max. 10 channels)
- 63600 - 63601-5 - Mainframe for 5 modules (Only one slot for dual channel load module, max. 6 channels)
- 63600 - 63610-80-20 - DC load module, 80V/20A/100Wx2
- 63600 - 63630-80-60 - DC load module, 80V/60A/300W
- 63600 - 63630-600-15 - DC load module, 600V/15A/300W
- 63600 - 63640-80-80 - DC load module, 80V/80A/400W
- 63600 - 63640-150-60 - DC load module, 150V/60A/400W
- 63600 - A636000 - GPIB interface for 63600-2/63600-5/63601-5 mainframe
- 63600 - A636001 - Ethernet interface for 63600-2/63600-5 mainframe
- 63600 - A636003 - External signal board (test pin) for 63600-2/63600-5/63601-5 mainframe
- 63600 - A636005 - External signal board (BNC) for 63600-2/63600-5/63601-5 mainframe
- 63600 - A636007 - Rack mounting kit for 63600-2 mainframe
- 63600 - A636008 - Rack mounting kit for 63600-5/63601-5 mainframe (for Europe only)
- 63600 - A636010 - Ethernet interface for 63601-5 mainframe
- 63600 - A632006 - NI USB-6211 bus-powered multifunction DAQ
| Model | 10533 |
|---|
CHROMA 10533

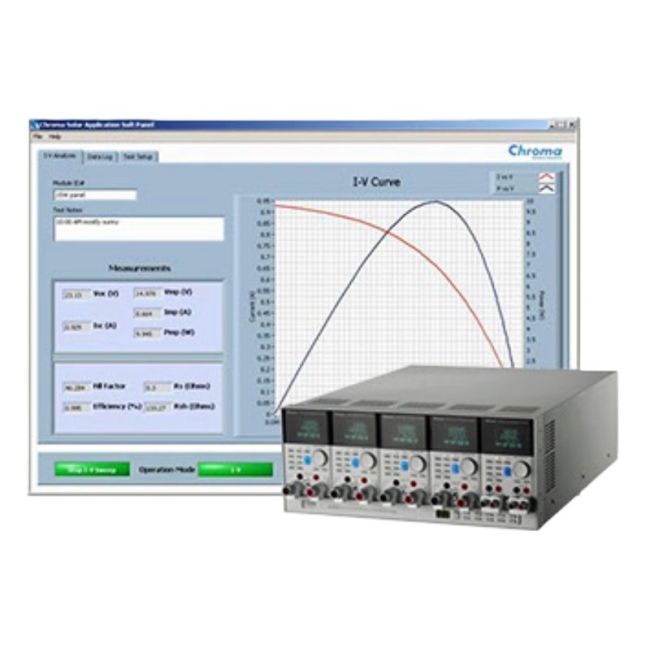

The Chroma 10533 Softpanel (SoftWare) is a graphical user interface which provides extraordinary capability and convenience to user for delivering control to the unit. The 10533 Softpanel is designed specifically for offering users control of the 63600 series of DC Loads by applying a user friendly interface configured in graphical, instrument like settings. The self explanatory graphical interface makes enabling of the extensive functions of the DC Load easy with just few clicks of a button. Users are able to perform online and offline waveform editing with the implementation of the softpanel. The softpanel is also equipped with data recording functions as multiple measurement data can be recorded simultaneously.
