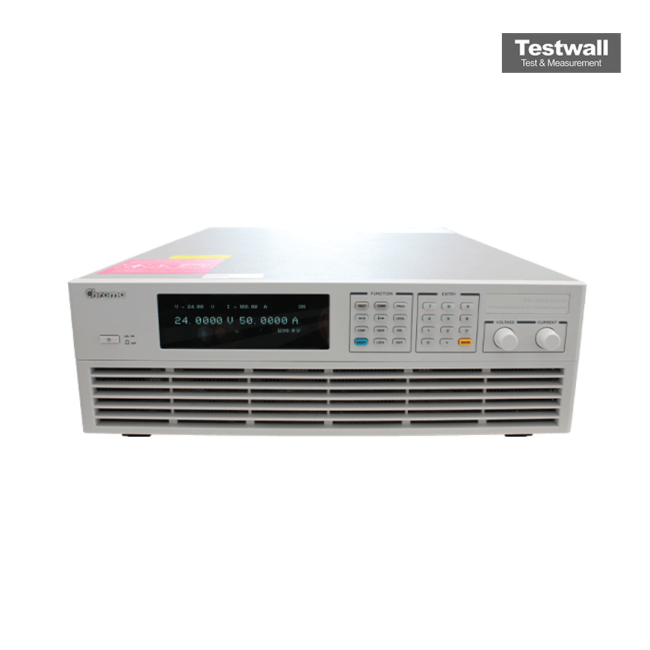

Chroma 62050H-40
| Attribute | Value |
|---|---|
| Output Voltage Range | 0 – 2000 V |
| Output Current Range | 0 – 25 A |
| Maximum Output Power | 50,000 W (50 kW) |
| Input Voltage | 3-Phase 200/208 VAC or 380/400/415 VAC, 50/60 Hz |
| Voltage Regulation (Load) | ≤ 0.05% + 20 mV |
| Current Regulation (Load) | ≤ 0.05% + 5 mA |
| Output Ripple & Noise (Voltage) | ≤ 200 mVp-p / 60 mVrms |
| Programming Resolution (Voltage) | 10 mV |
| Programming Resolution (Current) | 1 mA |
| Interface | GPIB, RS-232, USB, Ethernet (LAN) |
| Model | 62050H-40 |
|---|
The Chroma 62050H-40 programmable DC power supply delivers precision output up to 40 V/125 A (5 kW) with multiple regulation modes, ultra-low ripple (<1 mVrms), rapid transient response (<50 µs), dual output tracking (series/parallel), programmable OVP/OVC limits, dual remote sensing, user-defined sequencing and optional safety interlock for demanding electronic test and calibration environments.
Designed for precise power device characterization, battery emulation, solar inverter testing and automated manufacturing test lines, it supports programmable slew rate, internal voltage/current measurement, IEC/EN 61000-3-2 compliance, remote trigger, LAN/GPIB/USB control and intuitive front-panel interface.
Testwall provides the used Chroma 62050H-40 fully tested, with industry-leading warranties, dedicated technical consultation, competitive pricing and expedited global shipping, delivering superior performance and uptime compared to alternative suppliers.
