Chroma 62100H-600
| Attribute | Value |
|---|---|
| Output Voltage Range | 0 – 600 V |
| Output Current Range | 0 – 175 A |
| Maximum Output Power | 100 kW |
| Input Voltage | 3-Phase, 342 – 456 VAC, 50/60 Hz |
| Output Voltage Ripple (RMS) | ≤ 0.5 V |
| Output Current Ripple (RMS) | ≤ 500 mA |
| Voltage Regulation (Load) | ≤ 0.05% + 50 mV |
| Current Regulation (Load) | ≤ 0.05% + 50 mA |
| Interface / Communication | CAN Bus, RS-232, RS-485, GPIB, Ethernet (optional) |
| Cooling Method | Forced Air Cooling |
Chroma 62100H-600 Options:
- 62100H-600 - A620024 - GPIB Interface for 2kW/5kW/10kW/15kW models (Factory installed)
- 62100H-600 - A620025 - Ethernet Interface for 62000H series (Factory installed)
- 62100H-600 - A620026 - Rack Mounting kit for 62000H series
| Model | 62100H-600 |
|---|

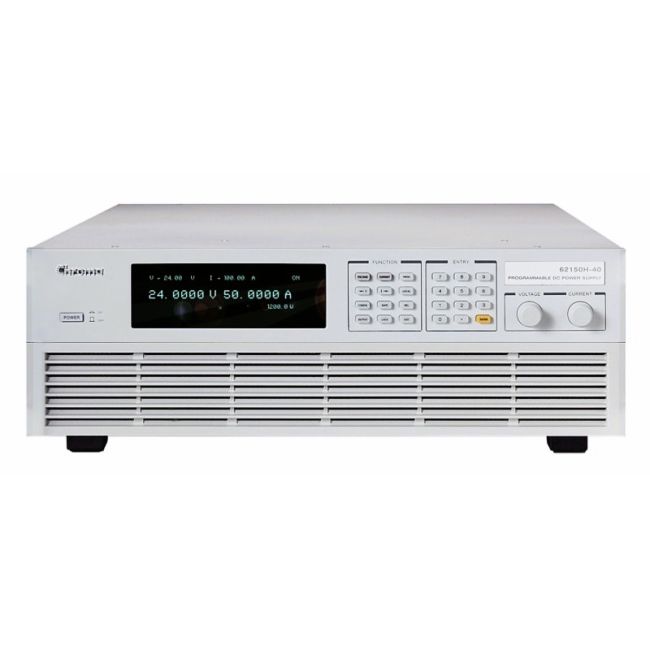

CHROMA 62100H-600 DC Power Supply
The Chroma 62100H-600 programmable DC power supplies offer many unique advantages for telecom, automated test system & integration, industrial, battery charge & simulation for hybrid cars and solar panel simulation. These advantages include high power density, precision readback of output cur and voltage, output trigger signals as well as the ability to create complex DC transient waveforms to test device behavior for spikes, drops, and other voltage deviations. The Chroma 62100H-600 has a 16 bit digital control with bright vacuum fluorescent display readout.
The Chroma 62100H-600 DC power supplies are very easy to operate either from the front panel keypad or from the remote controller. Its compact size with 3U only can be stacked on a bench in a standard rack without any difficulty. Another unique capability of the 62100H-600 supplies is their ability to create complex DC transient waveforms. This capability allows devices to be tested to DC voltage dropouts, spikes and other voltage variations making them an ideal choice for aerospace device testing, inverter testing and other devices which will experience voltage interrupts. Applications include DC/DC Converter & Inverter voltage drop test, engine startup simulation, battery automated charging, electronic product life cycle test, etc.
Specifications for the CHROMA 62100H-600 DC Power Supply Include:
| Output Voltage | 0-600V |
| Output Current | 0-17A |
| Total Power | 10,000W (10kW) |
| Line Regulation | ±0.01% F.S. |
