Chroma

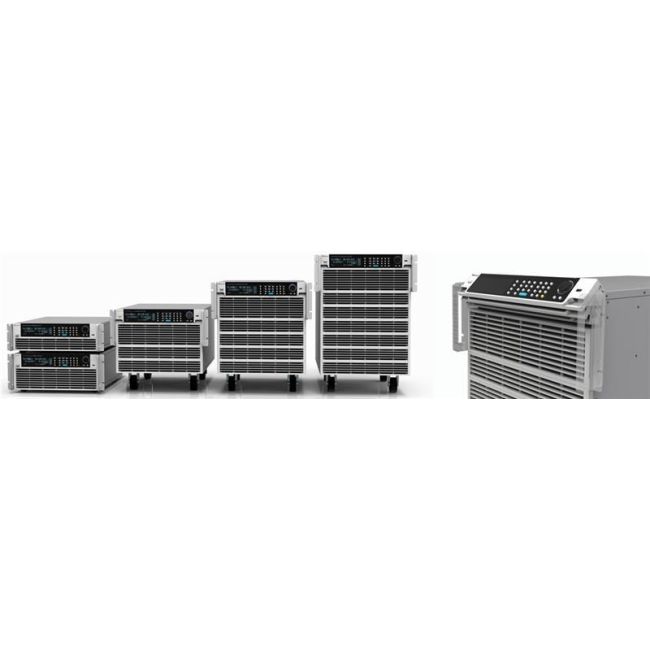

Chroma 63200A-60-1200
60kW DC Electronic Load 60kW / 1200V / 2400A
60 V Maximum Voltage
1200 A Maximum Current
18000 W Maximum Power
1 Number of Channels
CC, CV, CR, CP Operating Modes
| Attribute | Value |
|---|---|
| Maximum Voltage | 60 V |
| Maximum Current | 1200 A |
| Maximum Power | 18000 W |
| Number of Channels | 1 |
| Operating Modes | CC, CV, CR, CP |
| Minimum Voltage Resolution | 1 mV |
| Minimum Current Resolution | 10 mA |
| Interface | GPIB, USB, RS-232 |
| Dynamic Mode | Yes, with adjustable slew rate |
| Input Voltage (AC) | 180–250 VAC, 47–63 Hz |
Chroma 63200A-60-1200 Options:
- 63200A-60-1200 - A600009 - GPIB cable (200cm)
- 63200A-60-1200 - A600010 - GPIB cable (60cm)
- 63200A-60-1200 - A632000 - Softpanel for 63200A Series
- 63200A-60-1200 - A632006 - NI USB-6211 Bus-Powered Multifunction DAQ
- 63200A-60-1200 - A632007 - Over voltage protection box (for 1200V models only)
- 63200A-60-1200 - A632009 - Slave model (600V/1680A/24kW)
- 63200A-60-1200 - A632010 - Slave model (1200V/960A/24kW)
- 63200A-60-1200 - A636000 - GPIB interface
- 63200A-60-1200 - A636010 - Ethernet interface
- 63200A-60-1200 - B632000 - Handle for 3U models (2kW/3kW)
- 63200A-60-1200 - B632001 - Handle for 4U models (4kW/5kW/6kW)
- 63200A-60-1200 - B632002 - Rack mounting kit for 7U models (8kW/10kW/12kW)
- 63200A-60-1200 - B632003 - Rack mounting kit for 10U models (15kW/18kW)
- 63200A-60-1200 - B632004 - Rack mounting kit for 13U models (20kW/24kW)
| Model | 63200A-60-1200 |
|---|
