Chroma 63718-600-120
| Attribute | Value |
|---|---|
| Voltage Range | 0 – 600 V |
| Current Range | 0 – 120 A |
| Maximum Power | 18 kW |
| Number of Channels | 1 |
| Operating Mode | CC, CV, CR, CP |
| Minimum Operating Voltage | 1 V |
| Voltage Measurement Accuracy | ±0.05% of Full Scale |
| Current Measurement Accuracy | ±0.05% of Full Scale |
| Interface | GPIB, USB, RS-232 |
| Form Factor | Modular (for use with Chroma 6314x mainframe) |
Chroma 63718-600-120 Options:
- 63718-600-120 - A620039 - GPIB Interface
- 63718-600-120 - A620045 - CAN Interface
- 63718-600-120 - A600009 - GPIB Cable (200cm)
- 63718-600-120 - A600010 - GPIB Cable (60cm)
| Model | 63718-600-120 |
|---|

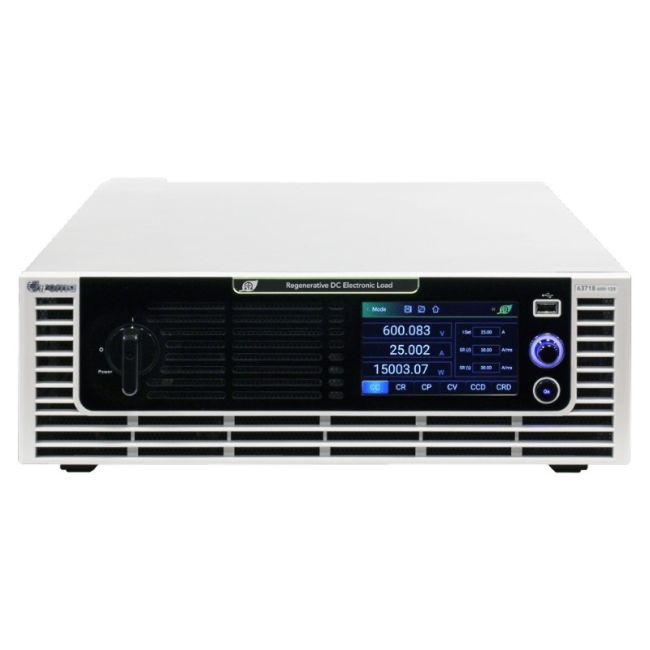

CHROMA 63718-600-120 Regenerative DC Load
The Chroma 63718-600-120 Regenerative DC Electronic Load offers a versatile solution for product reliability testing in various applications, including electric vehicle battery discharge, fuel cell discharge, power supply aging, and more. This regenerative DC load can simulate a wide range of load characteristics while also feeding energy back to the grid, reducing test environment temperatures, power consumption, and electricity costs.
With the Chroma 63718-600-120 power rating of 18kW per unit and currents of up to 120A, users can parallel up to 10 units for a maximum power of 180kW. The 63718-600-120 can simulate real cur waveforms, store up to 256 programmable sequences, and offer precise voltage and cur measurements. The 63718-600-120 is compact, energy-efficient, and suitable for a range of applications, making it an ideal choice for design verification and integration into automated test systems. Its regenerative capabilities, high power density, and efficient energy recovery sets it apart from conventional and resistive loads.
Specifications for the CHROMA 63718-600-120 Regenerative DC Load Include:
| Voltage Range | 0 ~ 600 V |
| Cur Range | 0 ~ 120 A |
| Total Power | 18 kW |
| Regeneration Efficiency | Max. 92% (Typical) AC 380 Vac |
