Crystal Engineering XP2I-100
| Attribute | Value |
|---|---|
| Pressure Range | 0 to 100 PSI |
| Accuracy | ±0.1% of full scale |
| Display | 4-digit LCD display |
| Pressure Units | PSI, bar, mbar, kPa, MPa, inHg, mmHg, inH2O, cmH2O, kg/cm² |
| Battery Life | Up to 1500 hours with standard AA batteries |
| Operating Temperature | -10°C to 50°C (14°F to 122°F) |
| Pressure Type | Gauge |
| Wetted Materials | 316L Stainless Steel |
| Process Connection | 1/4 inch NPT male |
| Certifications | ATEX, CE, CSA approved for hazardous locations |
Crystal Engineering XP2I-100 Options:
- XP2I-100 - DD - Dual Display
- XP2I-100 - S2 - 0.02% of Full Scale accuracy (15 to 25°C), 0.05% of Full Scale accuracy (-10 to 15°C, 25 to 50°C typical)
- XP2I-100 - S5 - 0.05% of Full Scale accuracy (-10 to 50°C)
- XP2I-100 - BSP - G 1/4 B BSP adapter type
- XP2I-100 - M20 - M20x1.5 adapter type
- XP2I-100 - RP - Back connection location
- XP2I-100 - F4 - Panel mount connection
- XP2I-100 - DL - DataLogging (32,000 data points, non-volatile flash memory)
- XP2I-100 - AXX - System A pump system, 0 to 30 psi/2 bar, pneumatic hand pump, aluminum case
- XP2I-100 - AHX - System A pump system, 0 to 580 psi/40 bar, pneumatic hand pump, aluminum case
- XP2I-100 - BXX - System B pump system, -25 inHg to 30 psi, pneumatic hand pump, aluminum case
- XP2I-100 - BHX - System B pump system, -27 inHg to 580 psi, pneumatic hand pump, aluminum case
- XP2I-100 - CXX - System C pump system, 0 to 3000 psi/200 bar, hydraulic (oil) hand pump, aluminum case
- XP2I-100 - CHX - System C pump system, 0 to 5000 psi/350 bar, hydraulic (oil) hand pump, aluminum case
- XP2I-100 - DOX - System D pump system, 0 to 5000 psi/350 bar, hydraulic (oil) bench top, aluminum case
- XP2I-100 - DWX - System D pump system, 0 to 5000 psi/350 bar, hydraulic (water) bench top, aluminum case
- XP2I-100 - EOX - System E pump system, 0 to 10,000 psi/700 bar, hydraulic (oil) bench top, aluminum case
- XP2I-100 - FOV - System F pump system, 0 to 15,000 psi/1000 bar, hydraulic (oil) bench top, aluminum case
- XP2I-100 - FWV - System F pump system, 0 to 15,000 psi/1000 bar, hydraulic (water) bench top, aluminum case
- XP2I-100 - GOX - System G pump system, 0 to 15,000 psi/1000 bar, hydraulic (oil) bench top, waterproof case
- XP2I-100 - GWX - System G pump system, 0 to 15,000 psi/1000 bar, hydraulic (water) bench top, waterproof case
- XP2I-100 - HOX - System H pump system, -27 inHg to 580 psi pneumatic and 0 to 5000 psi/350 bar hydraulic (oil), waterproof case
- XP2I-100 - W - Waterproof carrying case (Pelican Case)
| Model | XP2I-100 |
|---|

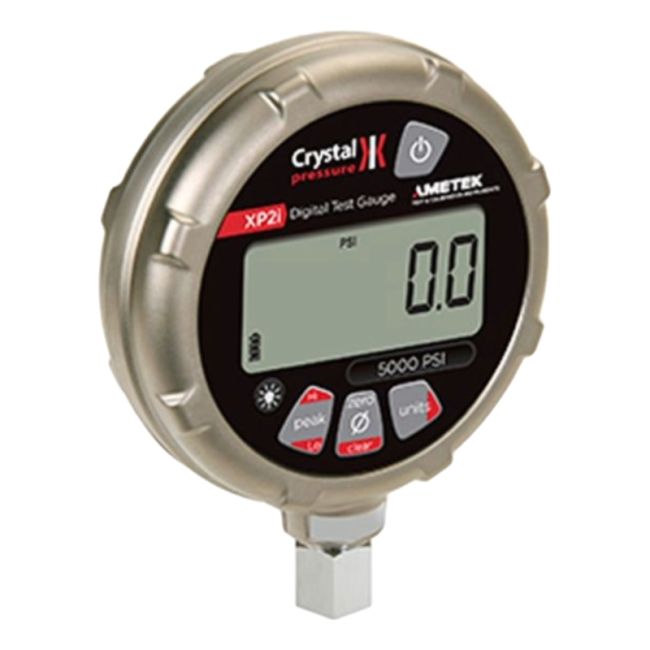

The Crystal Engineering XP2I-100 Digital Pressure Gauge is designed for precision and durability, offering 0.1% of reading accuracy across a 0 to 100 psi range. With long battery life, ultra-low power mode, and the ability to log up to 32,000 data points, it ensures consistent performance without external power. Its rugged build withstands drops, submersion, and over-pressurization, while the hard polycarbonate lens and elastomer-mounted circuitry provide maximum protection.
Simple to use with only three buttons, the XP2I-100 eliminates complex menus and delivers reliable data in demanding environments. Fully temperature compensated, it maintains accuracy across wide conditions, making it a versatile replacement for multiple conventional gauges.
Testwall can supply the used Crystal Engineering XP2I-100 Digital Pressure Gauge, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Crystal Engineering XP2I-100 Digital Pressure Gauge.
