Crystal Engineering XP2I-15000
| Attribute | Value |
|---|---|
| Pressure Range | 0 to 15,000 PSI |
| Accuracy | ±0.1% of full scale |
| Display | 4-digit LCD display |
| Pressure Units | PSI, bar, mbar, kPa, MPa, inHg, mmHg, inH2O, cmH2O, kg/cm² |
| Battery Life | Up to 2,000 hours with standard AA batteries |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Pressure Port Connection | 1/4 inch NPT male |
| Overpressure Rating | 2x full scale (30,000 PSI) |
| Data Logging | Minimum, maximum, and average pressure recording |
| Certifications | NIST traceable calibration certificate included |
Crystal Engineering XP2I-15000 Options:
- XP2I-15000 - DD - Dual Display
- XP2I-15000 - S2 - 0.02% of Full Scale accuracy (15 to 25°C), 0.05% of Full Scale (-10 to 15°C, 25 to 50°C typical)
- XP2I-15000 - S5 - 0.05% of Full Scale accuracy (-10 to 50°C)
- XP2I-15000 - BSP - G 1/4 B BSP adapter type
- XP2I-15000 - M20 - M20x1.5 adapter type
- XP2I-15000 - RP - Back connection location
- XP2I-15000 - F4 - Panel mount connection location
- XP2I-15000 - DL - Datalogging
- XP2I-15000 - W - Waterproof carrying case (Pelican Case)
| Model | XP2I-15000 |
|---|

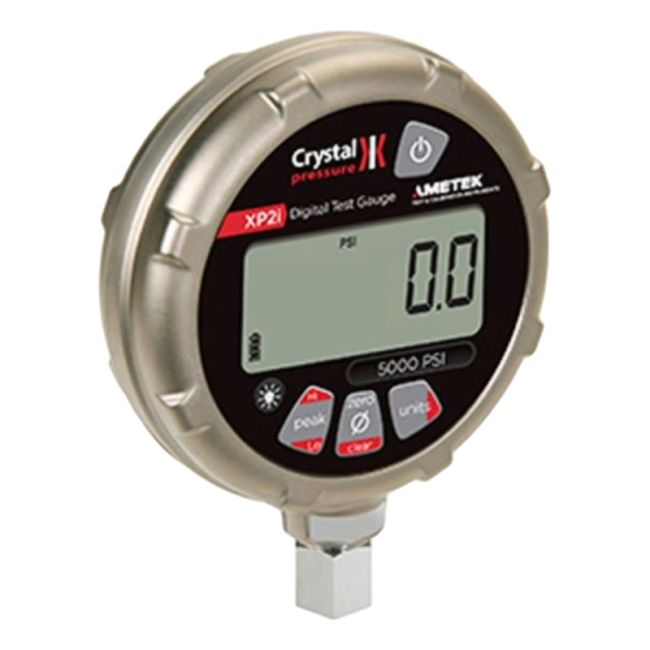

The Crystal Engineering XP2I-15000 Digital Pressure Gauge offers 0.1% accuracy across its 0 to 15000 psi range. Built ultra-rugged and intrinsically safe, it features long battery life, ultra-low power mode, and capacity to log 32,000 data points. Its hard polycarbonate lens and elastomer-mounted circuitry ensure durability against drops, shocks, and water exposure.
Designed for precision and usability, the XP2I-15000 operates with only three buttons, requires no external power, and delivers stable readings in varying pressure and temperature ranges. A single unit replaces multiple conventional gauges for diverse applications.
Testwall can supply the used Crystal Engineering XP2I-15000, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Crystal Engineering XP2I-15000.
