Crystal Engineering XP2I-300
| Attribute | Value |
|---|---|
| Pressure Range | 0 to 300 PSI |
| Accuracy | ±0.1% of full scale |
| Display | 4-digit LCD display |
| Pressure Units | PSI, bar, mbar, kPa, MPa, kg/cm², inHg, mmHg, inH2O, ftH2O, cmH2O |
| Battery Life | Approximately 2000 hours with standard alkaline batteries |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
| Pressure Port Connection | 1/4 inch NPT male |
| Ingress Protection Rating | IP67 (dust-tight and waterproof) |
| Power Supply | Two AA alkaline batteries |
Crystal Engineering XP2I-300 Options:
- XP2I-300 - DD - Dual Display
- XP2I-300 - S2 - 0.02% of Full Scale accuracy (15 to 25°C), 0.05% of Full Scale (-10 to 15°C, 25 to 50°C typical)
- XP2I-300 - S5 - 0.05% of Full Scale accuracy (-10 to 50°C)
- XP2I-300 - BSP - G 1/4 B BSP adapter type
- XP2I-300 - M20 - M20x1.5 adapter type
- XP2I-300 - RP - Back connection location
- XP2I-300 - F4 - Panel mount connection location
- XP2I-300 - DL - Datalogging (32000 data points, non-volatile flash memory)
- XP2I-300 - AXX - System A pump system (0 to 30 psi/2 bar, pneumatic hand pump), aluminum case
- XP2I-300 - AHX - System A pump system (0 to 580 psi/40 bar, pneumatic hand pump), aluminum case
- XP2I-300 - BXX - System B pump system (-25 inHg to 30 psi, pneumatic hand pump), aluminum case
- XP2I-300 - BHX - System B pump system (-27 inHg to 580 psi, pneumatic hand pump), aluminum case
- XP2I-300 - CXX - System C pump system (0 to 3000 psi/200 bar, hydraulic oil hand pump), aluminum case
- XP2I-300 - CHX - System C pump system (0 to 5000 psi/350 bar, hydraulic oil hand pump), aluminum case
- XP2I-300 - DOX - System D pump system (0 to 5000 psi/350 bar, hydraulic oil bench top), aluminum case
- XP2I-300 - DWX - System D pump system (0 to 5000 psi/350 bar, hydraulic water bench top), aluminum case
- XP2I-300 - EOX - System E pump system (0 to 10000 psi/700 bar, hydraulic oil bench top), aluminum case
- XP2I-300 - FOV - System F pump system (0 to 15000 psi/1000 bar, hydraulic oil bench top), aluminum case
- XP2I-300 - FWV - System F pump system (0 to 15000 psi/1000 bar, hydraulic water bench top), aluminum case
- XP2I-300 - GOX - System G pump system (0 to 15000 psi/1000 bar, hydraulic oil bench top), waterproof case
- XP2I-300 - GWX - System G pump system (0 to 15000 psi/1000 bar, hydraulic water bench top), waterproof case
- XP2I-300 - HOX - System H pump system (-27 inHg to 580 psi pneumatic and 0 to 5000 psi hydraulic oil), waterproof case
- XP2I-300 - W - Waterproof carrying case (Pelican Case)
| Model | XP2I-300 |
|---|

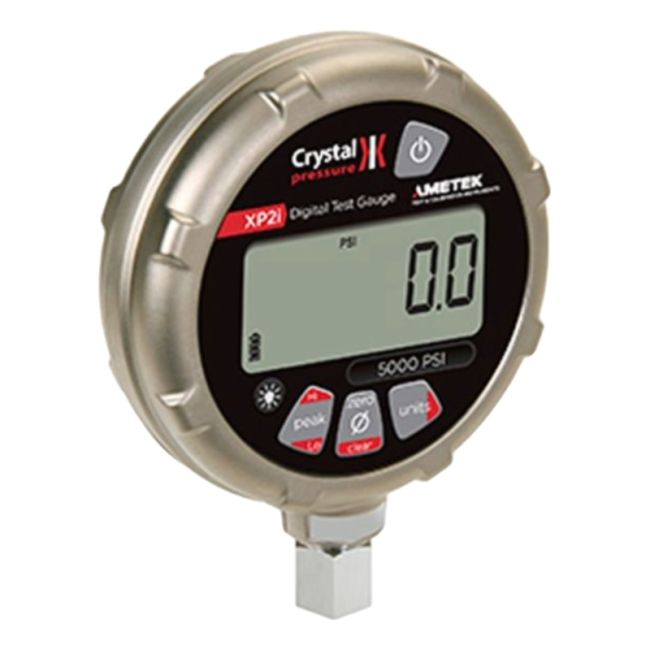

The Crystal Engineering XP2I-300 Digital Pressure Gauge is built for durability and precision, featuring 0.1% of reading accuracy, a 0–300 psi range, and intrinsic safety for demanding environments. It offers a long battery life with ultra-low power mode, enabling uninterrupted data logging for up to a year. The device includes a simple three-button control, a hard polycarbonate lens, shock-resistant elastomer-mounted circuitry, and the ability to record up to 32,000 data points, ensuring reliable performance even under drops, submersion, or over-pressure.
Ideal for pressure testing in harsh industrial environments, the XP2I-300 combines ruggedness and ease of use. Its fully temperature-compensated design maintains accuracy across wide pressure and temperature ranges, making it versatile for multiple applications.
Testwall can supply the used Crystal Engineering XP2I-300 Digital Pressure Gauge, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Crystal Engineering XP2I-300 Digital Pressure Gauge.
