Chroma 17020E
| Attribut | Wert |
|---|---|
| Spannungsbereich | 0 – 600 V DC |
| Strombereich | 0 – 102 A DC |
| Maximale Leistung | 2040 W |
| Anzahl der Kanäle | 1 Kanal |
| Betriebsmodi | CC, CV, CR, CP |
| Schnittstellen | GPIB, USB, RS-232 |
| Messauflösung Spannung | 1 mV |
| Messauflösung Strom | 1 mA |
| Schutzfunktionen | OVP, OCP, OPP, OTP |
| Betriebstemperatur | 0 °C – 40 °C |
Chroma 17020E Options:
- 17020E - 60V/180A/10kW/2CH/20kW - Regenerative Battery Pack Test System 60V/180A/10kW/2CH/20kW
- 17020E - 60V/180A/10kW/4CH/40kW - Regenerative Battery Pack Test System 60V/180A/10kW/4CH/40kW
- 17020E - 60V/180A/10kW/6CH/60kW - Regenerative Battery Pack Test System 60V/180A/10kW/6CH/60kW
- 17020E - 60V/180A/10kW/8CH/80kW - Regenerative Battery Pack Test System 60V/180A/10kW/8CH/80kW
- 17020E - 60V/360A/20kW/2CH/40kW - Regenerative Battery Pack Test System 60V/360A/20kW/2CH/40kW
- 17020E - 60V/360A/20kW/4CH/80kW - Regenerative Battery Pack Test System 60V/360A/20kW/4CH/80kW
- 17020E - 100V/100A/10kW/2CH/20kW - Regenerative Battery Pack Test System 100V/100A/10kW/2CH/20kW
- 17020E - 100V/100A/10kW/4CH/40kW - Regenerative Battery Pack Test System 100V/100A/10kW/4CH/40kW
- 17020E - 100V/100A/10kW/6CH/60kW - Regenerative Battery Pack Test System 100V/100A/10kW/6CH/60kW
- 17020E - 100V/100A/10kW/8CH/80kW - Regenerative Battery Pack Test System 100V/100A/10kW/8CH/80kW
- 17020E - 200V/100A/10kW/2CH/20kW - Regenerative Battery Pack Test System 200V/100A/10kW/2CH/20kW
- 17020E - 200V/100A/10kW/4CH/40kW - Regenerative Battery Pack Test System 200V/100A/10kW/4CH/40kW
- 17020E - 200V/100A/10kW/6CH/60kW - Regenerative Battery Pack Test System 200V/100A/10kW/6CH/60kW
- 17020E - 200V/100A/10kW/8CH/80kW - Regenerative Battery Pack Test System 200V/100A/10kW/8CH/80kW
- 17020E - A170201 - IPC for battery test system
- 17020E - A692000 - BMS data communication unit, 4 Channels
- 17020E - A692001 - BMS data communication unit, 8 Channels
- 17020E - A692009 - Parallel block (60V/100V/200V)
- 17020E - A692010 - Parallel cable (500A)
- 17020E - A692011 - Parallel output fixture (60V/100V/200V)
- 17020E - A692012 - Parallel block on bottom side (60V/100V/200V)
- 17020E - A692003 - Thermal sensor with cable (for OTP)
- 17020E - HIOKI 8423/8948 - Data Logger Measurement Unit
- 17020E - HIOKI 9683 - Connection cable caption for HIOKI 8423
| Model | 17020E |
|---|

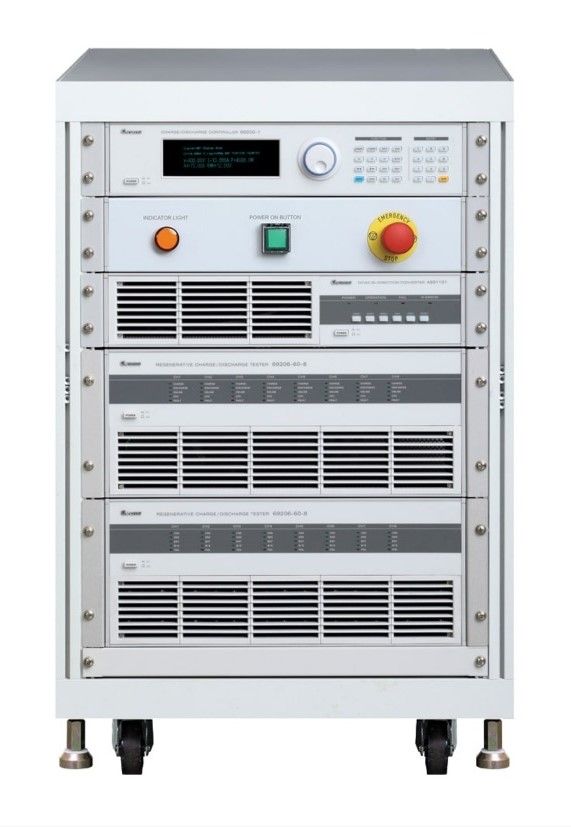

CHROMA 17020E Regenerative Battery Pack Test System
Chroma's 17020E is a high precision system specifically designed for secondary battery module and pack testing. Highly accurate sources and measurements ensure that the test quality is suitable for performing repetitive and reliable tests crucial for battery modules/ packs, incoming and outgoing inspections, as well as performance, production, and qualification testing. The Chroma 17020E system is equipped with 2/4 independent channels to support dedicated charge/discharge tests on multiple battery modules/packs, each with discrete test characteristics to achieve a high utilization rate of the equipment.
The Chroma 17020E, with its high precision output and measurement specifications, insures consistent test quality. A seamless transition function between charge and discharge allows programming a dynamic driving curve that can simulate the actual use of the battery pack on an electric vehicle. The Chroma 17020E system has flexible programming functions and may be operated with Chroma's powerful "Battery Pro" software. The Chroma 17020E has a regenerative energy feature that recycles the electrical energy sourced by a battery module during discharge either back into the channels in the system that are performing a charging test or to the utility mains.
Specifications for the CHROMA 17020E Regenerative Battery Pack Test System Include:
| Power Range (per Channel) | 10kW to 80kW |
| Max Voltage (per Channel) | 60V/100V/200V |
| Max Cur (per Channel) | 180A/360A/100A |
| Max Number of Channels | 8 |
